Elementverankering (J-anker)

Element anchoring

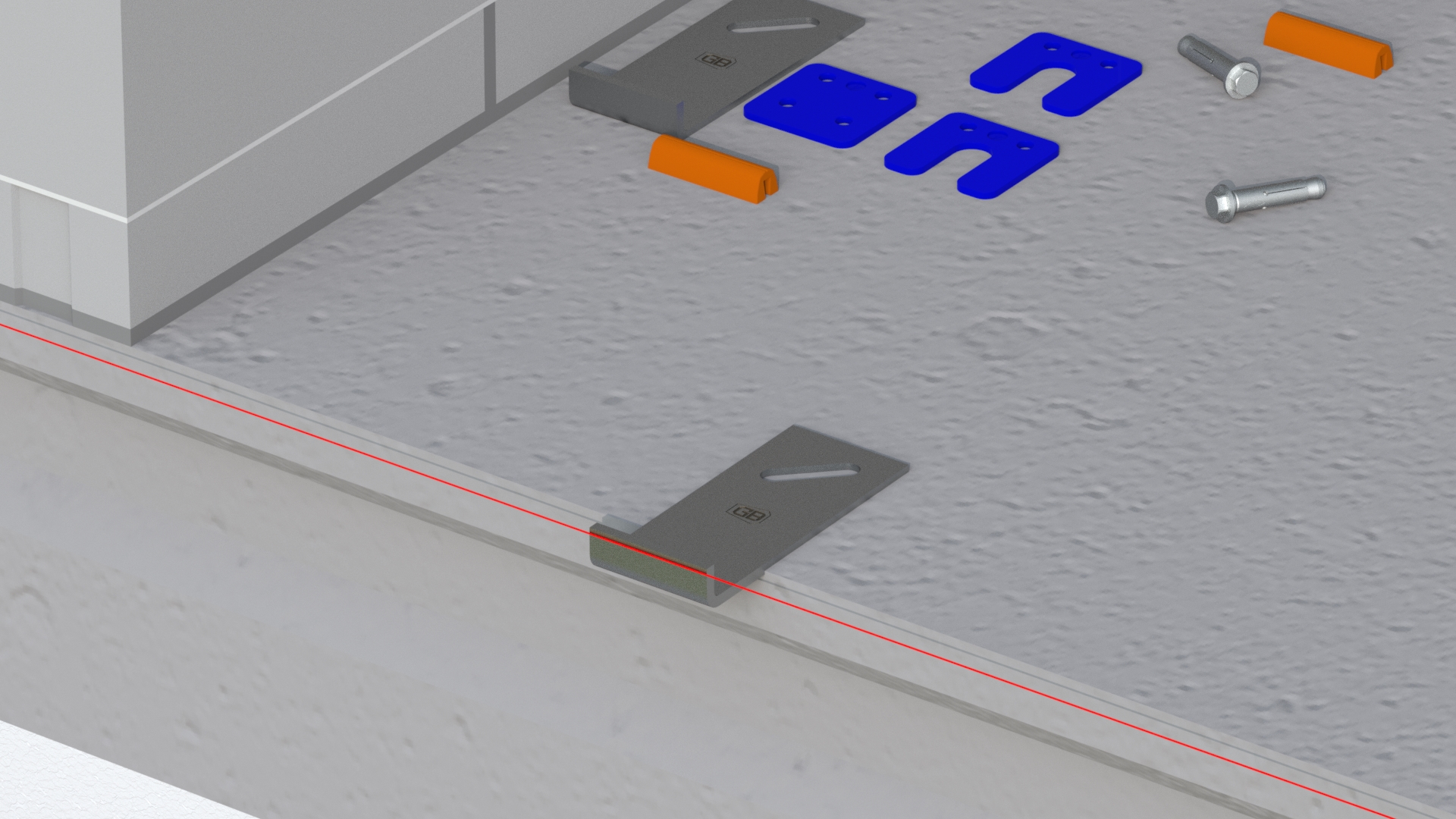

The element anchor (or J-Anchor) is a heavy mounting strip with a short angled bent end. Suitable for mounting HSB cavity leaves on a concrete floor with a rebated lower lintel. Element rubbers are placed on the arched end, which correspond to the width of the window.

Length
170 mm
240 mm
Width
50 mm
60 mm
70 mm
Thickness
6 mm
8 mm
Height
20 mm
22 mm
Slotted hole
Steel Quality
S315
S350
Surface treatment

Details & dimensions

Article

Article number07586260
EAN code8714318039240

Packaging

EAN code8714318039257
Packaging25 per bag
Length360 mm
Width140 mm
Height70 mm

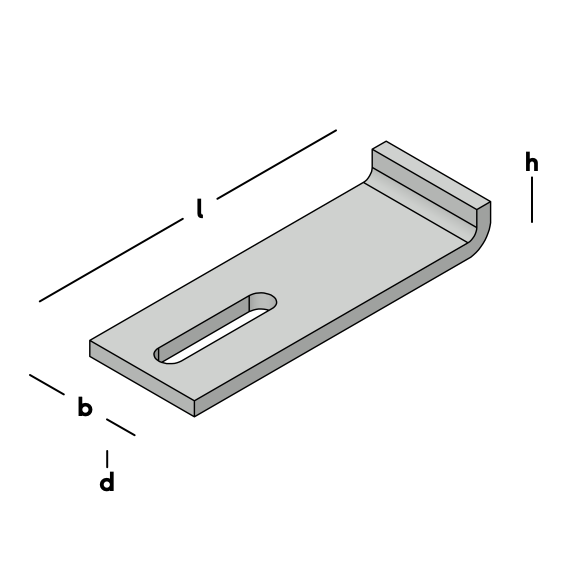

Dimensions

Element anchoring

Length (l)170 mm
Width (b)60 mm
Thickness (d)8 mm
Height (h)22 mm
Slotted hole65x13 mm
MaterialSteel
Steel QualityS315
Surface treatmentEV
