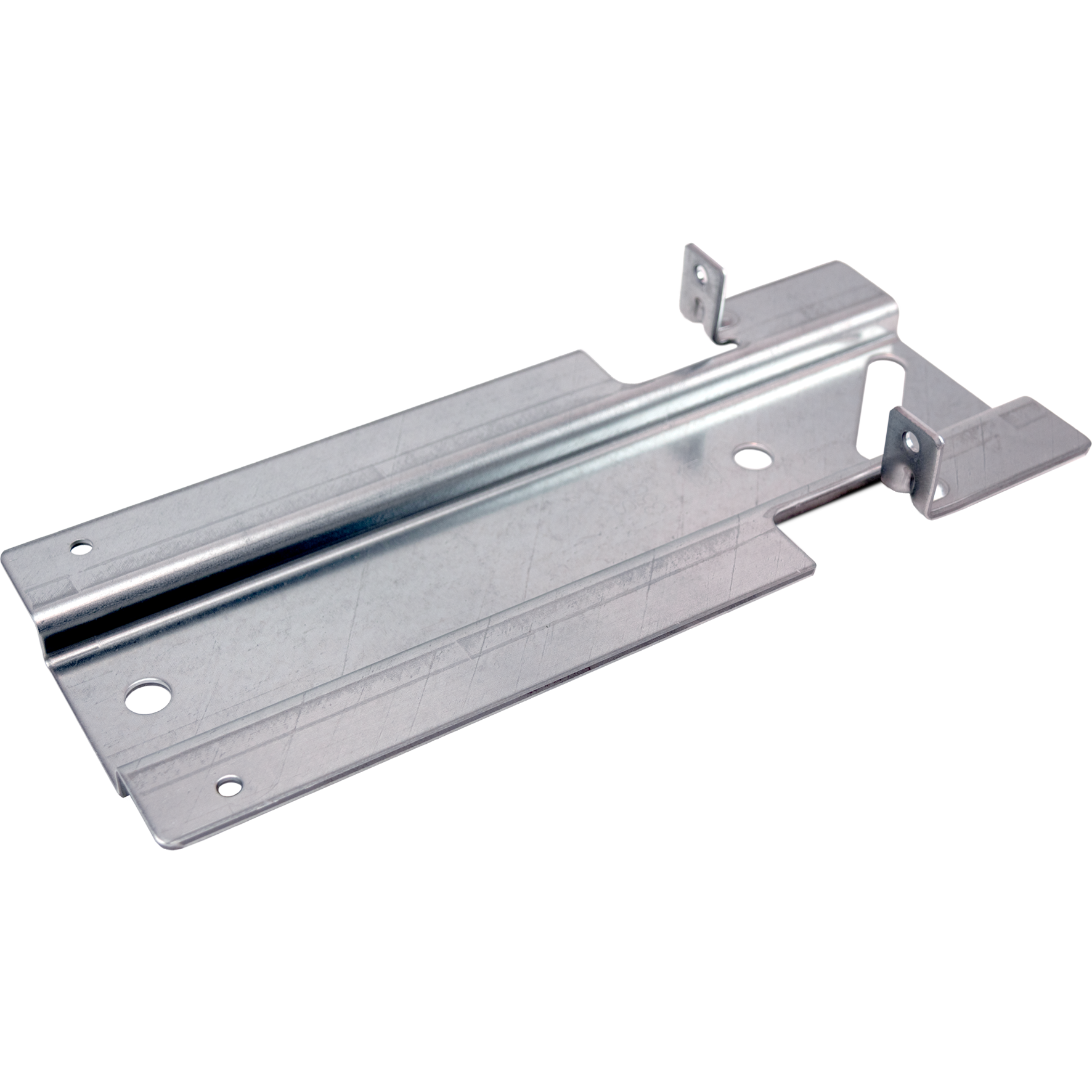

Floor HSB strip with lip

Heavy mounting strip for anchoring (adjustable) window frames, facades and (facade) elements to the floor structure. Equipped with a vertically welded lip that serves as a stop and directly allows the element to be fastened.

Length 1

Length 2

Width

111 mm

114 mm

146 mm

Thickness

3 mm

4 mm

Height

17 mm

19 mm

Slotted holes diagonal

2/13x32 mm

13x60 mm

Details & dimensions

Article

Article number073848

EAN code8714318079680

Packaging

EAN code8714318079697

Packaging15 per box

Length325 mm

Width225 mm

Height175 mm

Dimensions

Floor HSB strip with lip

Length 1242 mm

Length 2315 mm

Width111 mm

Thickness3 mm

Height17 mm

Hole pattern4/6,5

Wood size242-266 mm

Lip size21x30 mm

Slotted holes diagonal2/13x32 mm

Type5

MaterialSteel

Steel QualityS350

Surface treatment SV-2

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Processing & accessories

1 / 6

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Height	Hole pattern	Wood size	Lip size	Slotted holes diagonal	Type	Material	Steel Quality
Floor HSB strip with lip	073843	15 per box	75 mm	205 mm	111 mm	3 mm	17 mm	4/6,5	75-119 mm	21x30 mm	2/13x32 mm	1	Steel	S350
Floor HSB strip with lip	073844	15 per box	150 mm	280 mm	111 mm	3 mm	17 mm	4/6,5	150-190 mm	21x30 mm	2/13x32 mm	2	Steel	S350
Floor HSB strip with lip	073845	15 per box	120 mm	250 mm	111 mm	3 mm	17 mm	4/6,5	120-149 mm	21x30 mm	2/13x32 mm	3	Steel	S350
Floor HSB strip with lip	073846	15 per box	191 mm	264 mm	111 mm	3 mm	17 mm	4/6,5	191-241 mm	21x30 mm	2/13x32 mm	4	Steel	S350
Floor HSB strip with lip	073847	15 per box	220 mm	293 mm	111 mm	3 mm	17 mm	4/6,5	220-241 mm	21x30 mm	2/13x32 mm	-	Steel	S350
Floor HSB strip with lip	073848	15 per box	242 mm	315 mm	111 mm	3 mm	17 mm	4/6,5	242-266 mm	21x30 mm	2/13x32 mm	5	Steel	S350
Floor HSB strip with lip	073849	15 per box	267 mm	340 mm	111 mm	3 mm	17 mm	4/6,5	267-290 mm	21x30 mm	2/13x32 mm	6	Steel	S350
Floor HSB strip with lip	074858	15 per box	372 mm	242 mm	114 mm	4 mm	17 mm	4/6	242-266 mm	23x30 mm	2/13x32 mm	7	Steel	S350
Floor HSB strip with lip	074863	10 per box	264 mm	191 mm	146 mm	4 mm	19 mm	4/6,5-2/13	191-241 mm	21x30 mm	13x60 mm	-	Steel	S350
