High pressure plate

High-pressure plate, for absorbing height differences of structural elements and heavy structures (concrete and/or timber frame construction elements). Evenly distributed load capacity up to 8,500 kg.

Length

70 mm

100 mm

Width

70 mm

120 mm

Thickness

Press Load max

20000 kg

45000 kg

Details & dimensions

Article

Article number34820

EAN code8714318046125

Packaging

EAN code8714318046132

Packaging48 per bag

Length400 mm

Width300 mm

Height80 mm

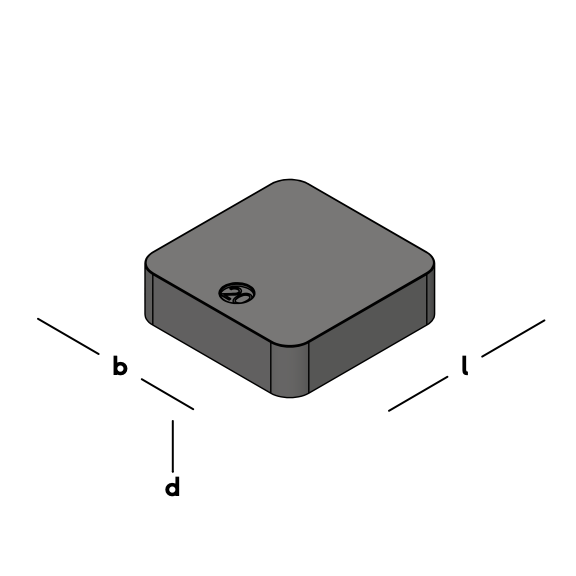

Dimensions

High pressure plate

Length (l)70 mm

Width (b)70 mm

Thickness (d)20 mm

Press Load max20000 kg

ColorBlack

MaterialPlastic

Material quality ABS

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Press Load max	Color	Material
High pressure plate	34802	288 per bag	70 mm	70 mm	2 mm	-	20000 kg	Black	Plastic
High pressure plate	34803	288 per bag	70 mm	70 mm	3 mm	-	20000 kg	Black	Plastic
High pressure plate	34805	192 per bag	70 mm	70 mm	5 mm	-	20000 kg	Black	Plastic
High pressure plate	34810	144	70 mm	70 mm	10 mm	-	20000 kg	Black	Plastic
High pressure plate	34820	48 per bag	70 mm	70 mm	20 mm	-	20000 kg	Black	Plastic
High pressure plate	349202	144 per bag	100 mm	120 mm	2 mm	4/11-1/14	45000 kg	Black	Plastic
High pressure plate	349203	144 per bag	100 mm	120 mm	3 mm	4/11-1/14	45000 kg	Black	Plastic
High pressure plate	349205	96 per bag	100 mm	120 mm	5 mm	4/11-1/14	45000 kg	Black	Plastic
High pressure plate	349210	48 per bag	100 mm	120 mm	10 mm	4/11-1/14	45000 kg	Black	Plastic
