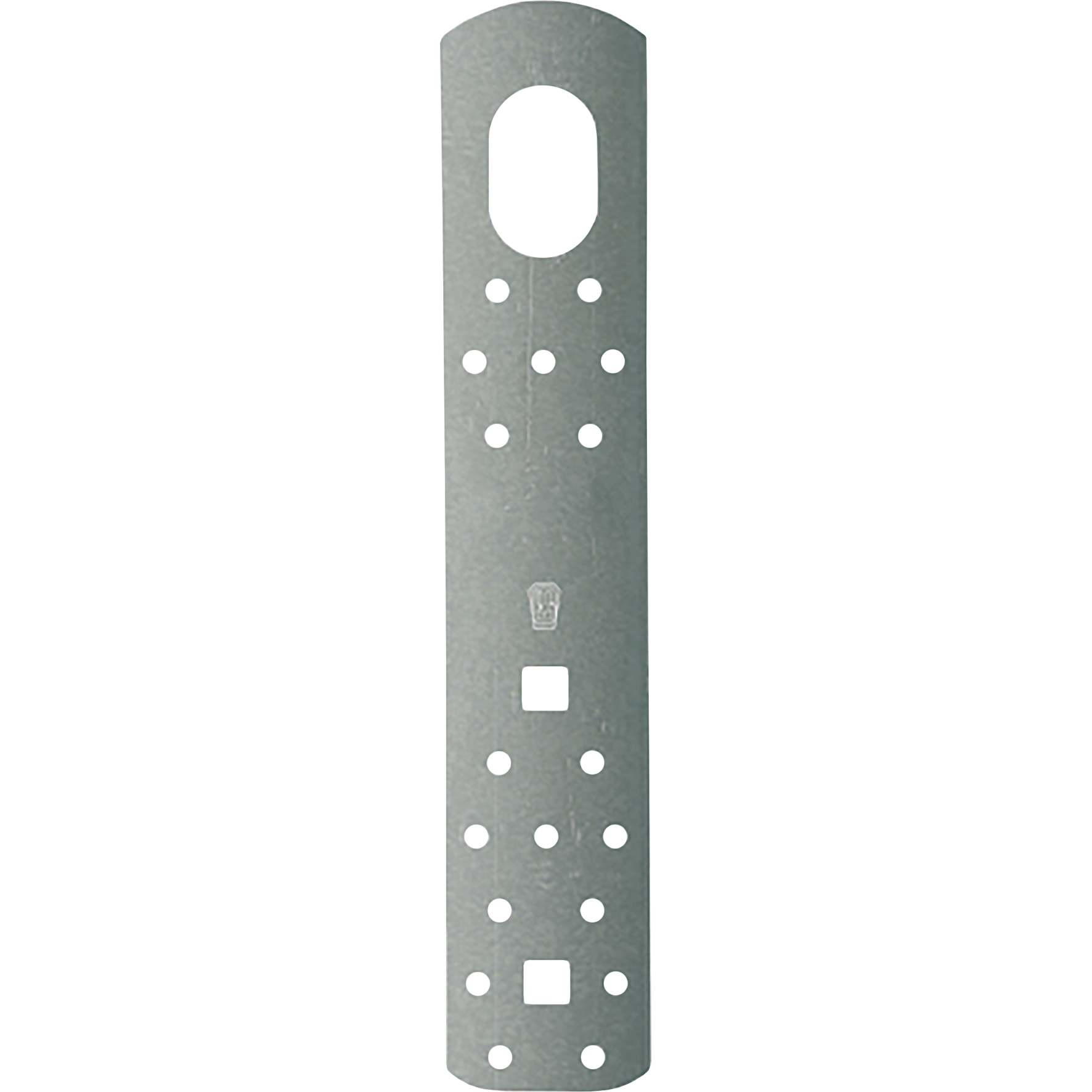

Lifting ring

Metal strip with an eye and screw holes designed to be used as a lifting device for wooden window frames, facades, and elements. Hoisting should be done in accordance with SHR guidelines.

Length

Width

46 mm

60 mm

70 mm

Thickness

2 mm

2,5 mm

3 mm

Steel Quality

DX51

S350

Details & dimensions

Article

Article number074255

EAN code8714318023737

Packaging

EAN code8714318127138

Packaging50 per box

Length335 mm

Width140 mm

Height63 mm

Dimensions

Lifting ring

Length (l)300 mm

Width (b)60 mm

Thickness (d)2 mm

Hole pattern18/5

Square hole2/11x11 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

SHR Certificate

Technical Sheet

Processing & accessories

1 / 5

View our assembly instructions here that help you step by step to an end result.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Square hole	Material	Steel Quality
Lifting ring	074220	100 per box	150 mm	46 mm	2,5 mm	8/4-1/30	-	Steel	DX51
Lifting ring	074240	50 per box	200 mm	46 mm	2,5 mm	8/6-2/9-1/27	9x9-11x11 mm	Steel	DX51
Lifting ring	074253	50 per box	250 mm	60 mm	2 mm	18/5	2/11x11 mm	Steel	DX51
Lifting ring	074255	50 per box	300 mm	60 mm	2 mm	18/5	2/11x11 mm	Steel	DX51
Lifting ring	074256	50 per box	350 mm	60 mm	2 mm	18/5	2/11x11 mm	Steel	DX51
Lifting ring	074257	50 per box	500 mm	60 mm	2 mm	25/5	2/11x11 mm	Steel	DX51
Lifting ring	074258	25 per bunch	600 mm	60 mm	2 mm	42/5	2/11x11 mm	Steel	DX51
Lifting ring	074263	50 per box	180 mm	70 mm	2 mm	9/5	-	Steel	DX51
Lifting ring	074355	50 per box	300 mm	60 mm	3 mm	18/5	2/11x11 mm	Steel	S350
Lifting ring	074356	50 per box	350 mm	60 mm	3 mm	18/5	2/11x11 mm	Steel	S350
