Z-anchor
Mounting plate with a Z-profile, suitable for lintel mounting of window frames against the underside of a floor. Because of the shape of this anchor, it is appropriate for use when mounting building components in the location of the isolation cores.
Details & dimensions
Article
Article number0752460
EAN code8714318066192
Packaging
EAN code8714318066208
Packaging100 per box
Length340 mm
Width260 mm
Height85 mm
Dimensions

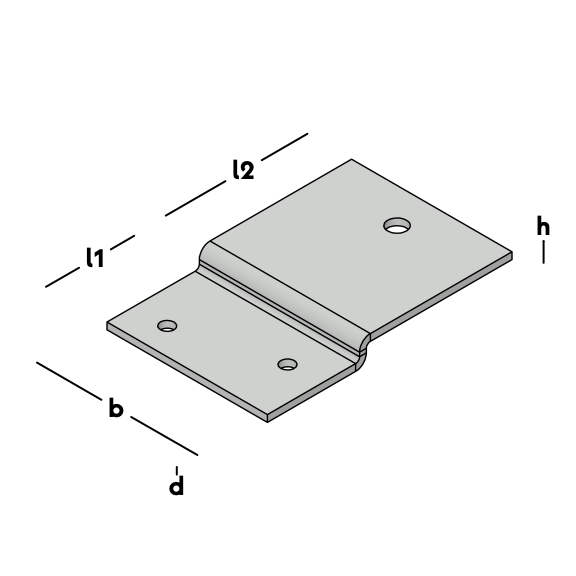

Z-anchor
Length 1 (l1)40 mm
Length 2 (l2)50 mm
Width (b)50 mm
Thickness (d)2,5 mm
Height (h)10 mm
Hole pattern2/5-1/7
Bend10 mm
MaterialSteel
Steel QualityDX51
Surface treatment
