Angle bracket

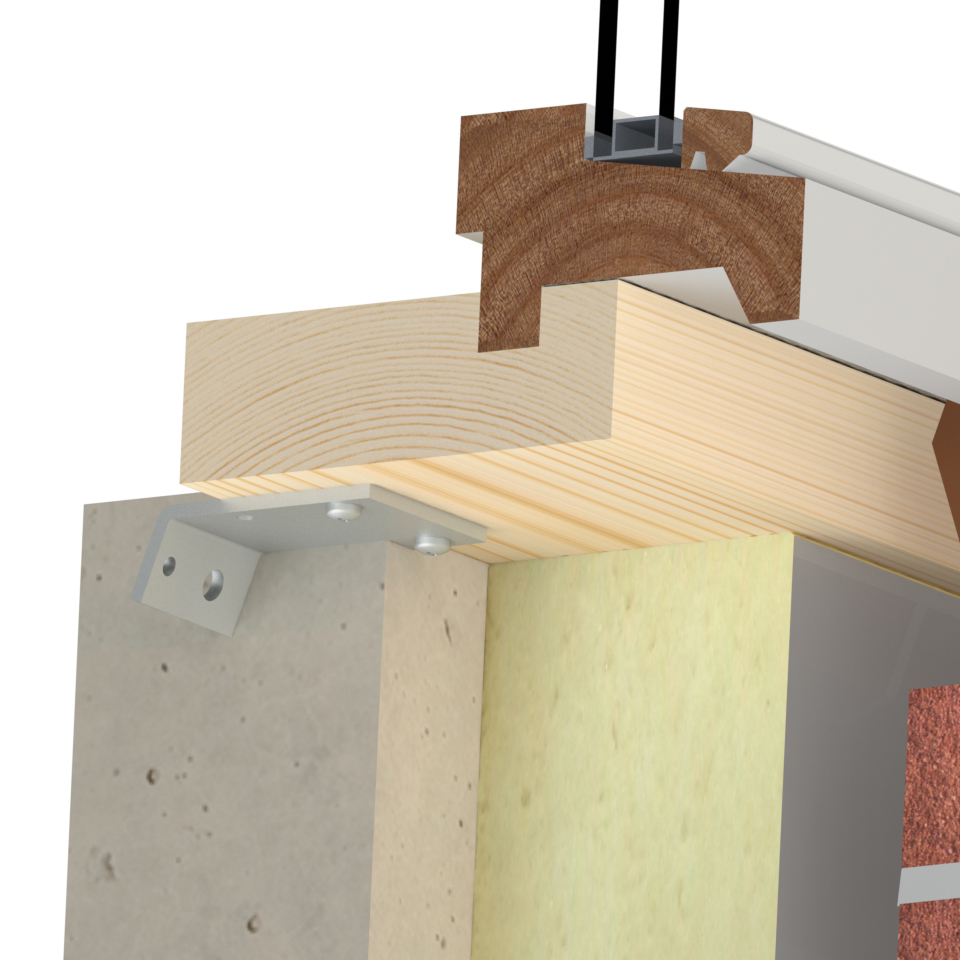

Corner anchor for frame mounting in precast concrete construction. These corners are embedded during the production of precast walls.

Length 1

27 mm

45 mm

Length 2

68 mm

135 mm

Width

60 mm

70 mm

Thickness

2 mm

4 mm

8 mm

Slotted hole

13x50 diag. mm

40x13 mm

Steel Quality

DX51

S315

S350

Surface treatment

EV-2

SV-2

Details & dimensions

Article

Article number070304

EAN code8714318078713

Packaging

EAN code8714318078690

Packaging100 per bag

Length400 mm

Width300 mm

Height250 mm

Dimensions

Angle bracket

Length 1 (l1)27 mm

Length 2 (l2)68 mm

Width (b)60 mm

Thickness (d)4 mm

Hole pattern6/5,5-1/9

Degrees ° angle-put110 °

MaterialSteel

Steel QualityS350

Surface treatment SV-2

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted hole	Hole pattern	Slotted holes diagonal	Degrees ° angle-put	Material	Steel Quality
Angle bracket	070303	200 per bag	27 mm	68 mm	60 mm	2 mm	40x13 mm	6/5,5-1/9	-	110 °	Steel	DX51
Angle bracket	070304	100 per bag	27 mm	68 mm	60 mm	4 mm	-	6/5,5-1/9	-	110 °	Steel	S350
Angle bracket	070305	25 per bag	45 mm	135 mm	70 mm	8 mm	13x50 diag. mm	2/9-1/11	50x13 mm	110 °	Steel	S315
