Concrete angle bracket

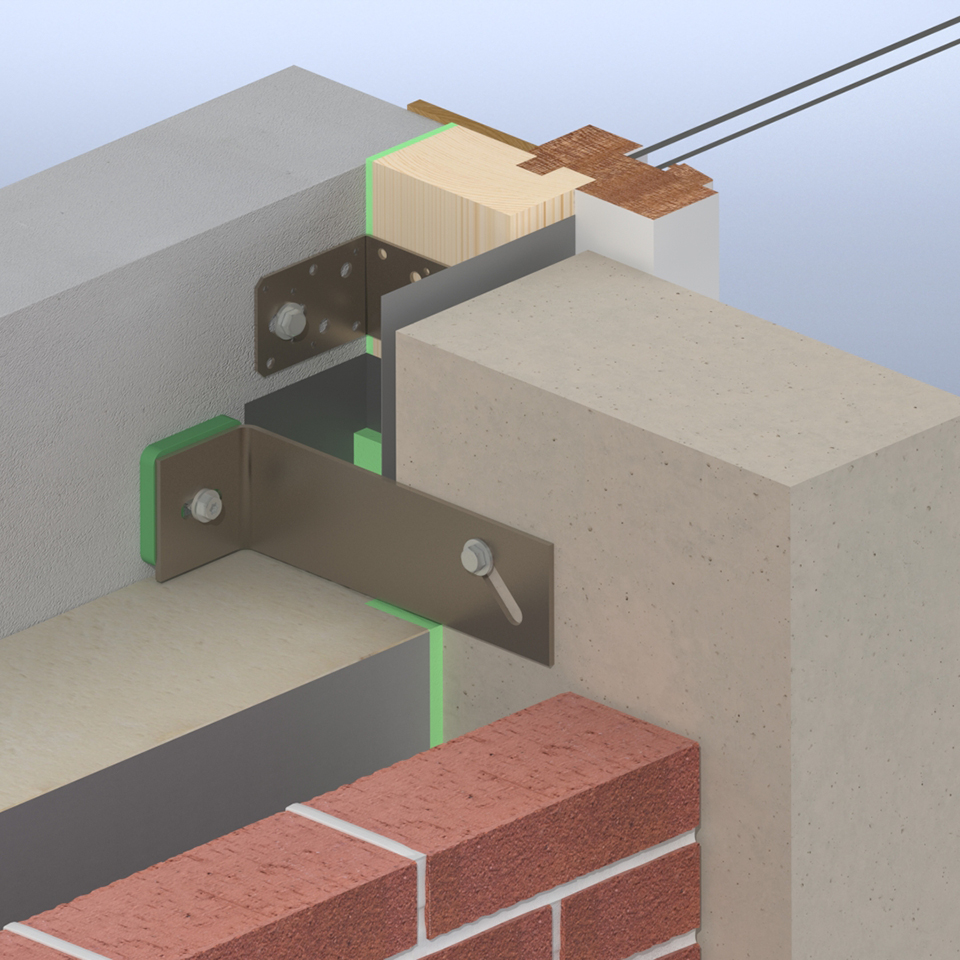

Corner anchor for mounting a concrete window frame to an internal wall made of sand-lime brick, concrete or brick.

Length 2

217 mm

242 mm

Details & dimensions

Article number0753217

EAN code8714318080761

EAN code8714318080730

Packaging15 per box

Length275 mm

Width150 mm

Height90 mm

Length 1 (l1)235 mm

Length 2 (l2)217 mm

Width (b)72 mm

Thickness (d)4 mm

Slotted holes diagonal50x13-32x11 mm

MaterialSteel

Steel QualityS350

Surface treatment ZM-4

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Slotted holes diagonal	Material	Steel Quality	Surface treatment
Concrete angle bracket	0753242	15 per box	235 mm	242 mm	72 mm	4 mm	50x13-32x11 mm	Steel	S350
Concrete angle bracket	0753217	15 per box	235 mm	217 mm	72 mm	4 mm	50x13-32x11 mm	Steel	S350
