End plate

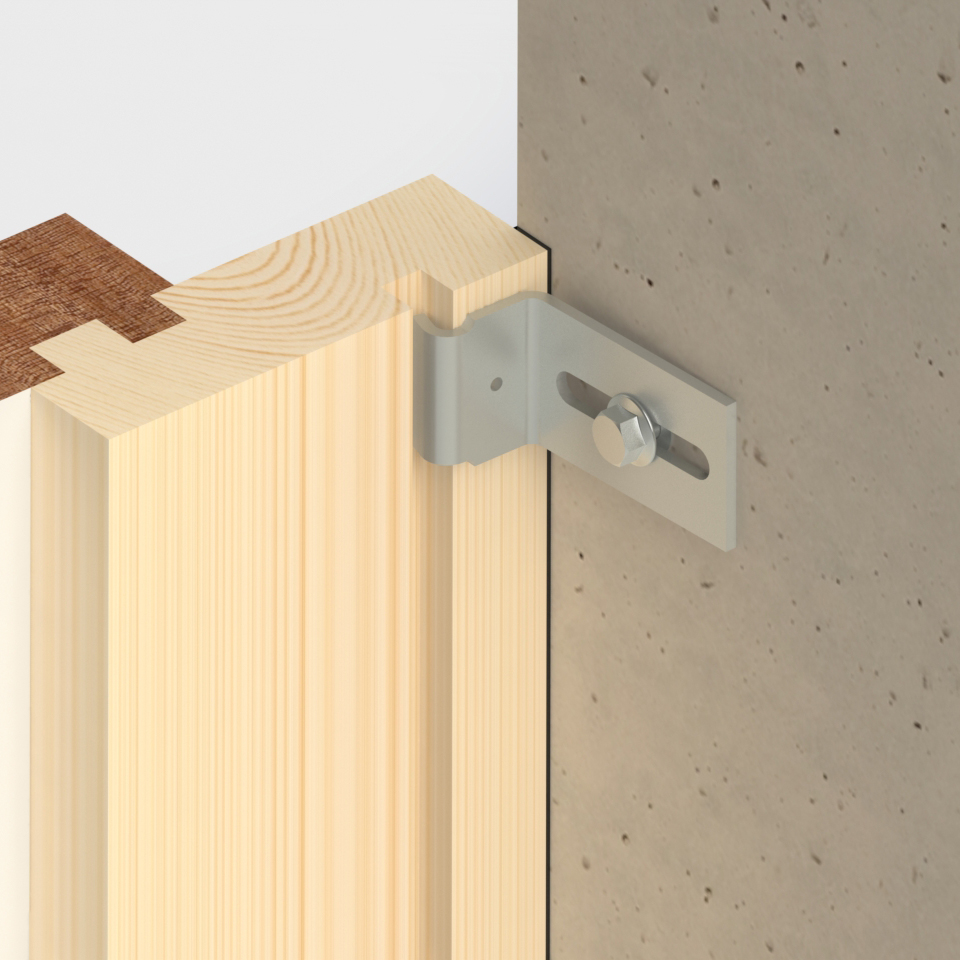

Set strip with a special (hook) setting for 'clamping' a window frame with rebate in a (prefab) concrete inner cavity wall. Locking plates have one or more slotted holes to allow the frame to be properly adjusted.

Length
60 mm
85 mm
Width
35 mm
50 mm
Height
30 mm
38 mm
53 mm
Slotted hole
11x60 mm
40x11 mm
60x11 mm
Steel Quality
DX51
S350

Details & dimensions

Article

Article number075130
EAN code8714318061883

Packaging

EAN code8714318061890
Packaging100 per bag
Length400 mm
Width320 mm
Height160 mm

Dimensions

End plate

Length (l)85 mm
Width (b)50 mm
Thickness (d)4 mm
Height (h)38 mm
Slotted hole60x11 mm
Hole pattern1/5
Degrees ° angle-put93 °
MaterialSteel
Steel QualityS350
Surface treatmentZM
