Anti-climb strip

Strip with alternating sharp points for mounting on a wall or roof edge to prevent unwanted climbing. The strips are supplied in lengths of 1000 mm and can be cut and/or bent to any length.

Thickness

2 mm

3 mm

Material

RVS 304

Steel

Steel Quality

S235

S350

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article

Article number7149351

EAN code8714318060329

Packaging

EAN code8714318060336

Packaging5 per box

Length1010 mm

Width60 mm

Height10 mm

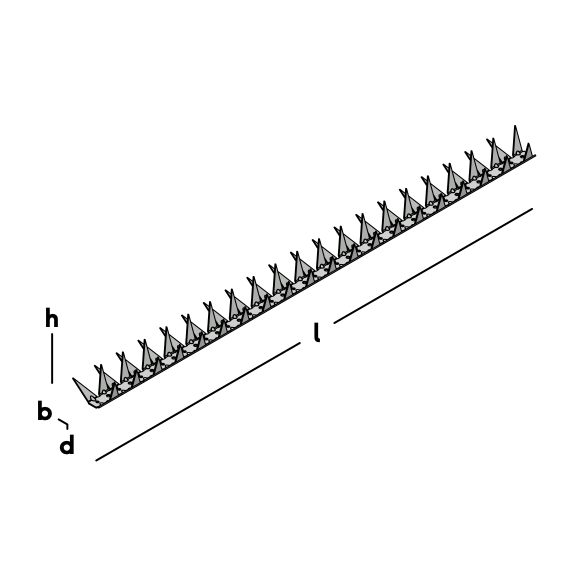

Dimensions

Anti-climb strip

Length (l)1000 mm

Width (b)20 mm

Thickness (d)2 mm

Height (h)46 mm

Hole pattern20/5-20/6,5

MaterialRVS 304

Steel QualityW-Nr.: 1.4301

Surface treatment 304

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Lengte	Breedte	Breedte 1	Breedte 2	Dikte	Hoogte	Gatenpatroon	Graden ° hoek-gezet	Materiaal	Staalkwaliteit	Oppervlaktebehandeling
Anti Klimstrip	714935	5 per box	1000 mm	20 mm	-	-	2 mm	46 mm	20/5-20/6,5	-	Staal	S350
Anti Klimstrip	7149351	5 per box	1000 mm	20 mm	-	-	2 mm	46 mm	20/5-20/6,5	-	RVS 304	W-Nr.: 1.4301	-
Anti Klimstrip	714940	1 piece	1000 mm	-	65 mm	30 mm	3 mm	-	20/7	150 °	Staal	S350
Anti Klimstrip	714960	1 piece	1000 mm	-	65 mm	30 mm	3 mm	-	20/7	150 °	Staal	S235
