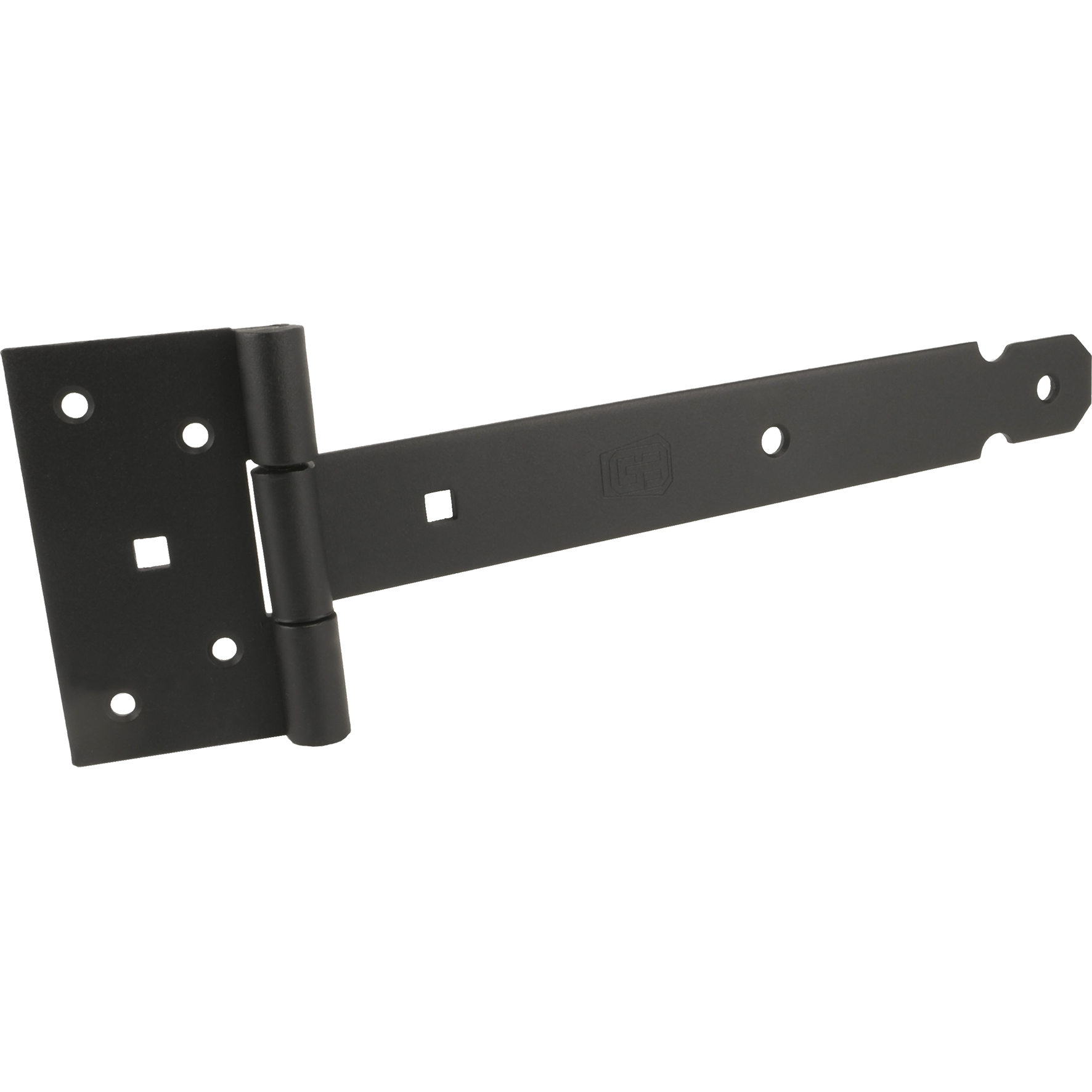

Cross hinge - heavy duty

Heavy hinge with an extended blade on one side. Suitable for gates, shutters and doors.

Length

Steel Quality

DX51

S235

S350

Surface treatment

EPZ

ZM 300

Details & dimensions

Article number419310

EAN code8714318063719

EAN code8714318063726

Packaging6 per box

Length840 mm

Width130 mm

Height75 mm

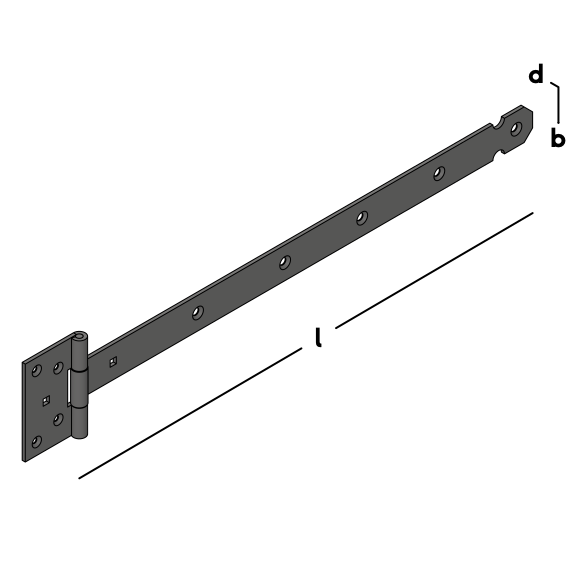

Length (l)600 mm

Width (b)40 mm

Thickness (d)4 mm

Hole pattern4/6-5/8

Square hole2/8x8 mm

MaterialSteel

Steel QualityS235

Surface treatment EPZ

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Square hole	Material	Steel Quality	Surface treatment
Cross hinge - heavy duty	415050	6 per box	300 mm	40 mm	4 mm	4/6-2/8	2/8x8 mm	Steel	DX51
Cross hinge - heavy duty	415070	6 per box	400 mm	40 mm	4 mm	4/6-3/8	2/8x8 mm	Steel	DX51
Cross hinge - heavy duty	415090	6 per box	500 mm	40 mm	4 mm	4/6-4/8	2/8x8 mm	Steel	DX51
Cross hinge - heavy duty	415110	6 per box	600 mm	40 mm	4 mm	4/6-5/8	2/8x8 mm	Steel	DX51
Cross hinge - heavy duty	416300	6 per box	300 mm	40 mm	4 mm	4/6-2/8	2/8x8 mm	Steel	S350	ZM 300
Cross hinge - heavy duty	416400	6 per box	400 mm	40 mm	4 mm	4/6-3/8	2/8x8 mm	Steel	S350	ZM 300
Cross hinge - heavy duty	416500	6 per box	500 mm	40 mm	4 mm	4/6-4/8	2/8x8 mm	Steel	S350	ZM 300
Cross hinge - heavy duty	416600	6 per box	600 mm	40 mm	4 mm	4/6-5/8	2/8x8 mm	Steel	S350	ZM 300
Cross hinge - heavy duty	419270	6 per box	400 mm	40 mm	4 mm	4/6-3/8	2/8x8 mm	Steel	S235
Cross hinge - heavy duty	419250	6 per box	300 mm	40 mm	4 mm	4/6-2/8	2/8x8 mm	Steel	S235
Cross hinge - heavy duty	419290	6 per box	500 mm	40 mm	4 mm	4/6-4/8	2/8x8 mm	Steel	S235
Cross hinge - heavy duty	419310	6 per box	600 mm	40 mm	4 mm	4/6-5/8	2/8x8 mm	Steel	S235
