Door joist hook open

Open hook suitable for wooden or steel door beams with a head size of up to 55 x 75 mm.

Surface treatment

EPZ

Details & dimensions

Article number714908

EAN code8714318065621

EAN code8714318065638

Packaging10 per box

Length225 mm

Width135 mm

Height65 mm

Length (l)55 mm

Width (b)45 mm

Thickness (d)6 mm

Height (h)75 mm

Receivers fordoor bar max 55x75

Hole pattern2/9

MaterialSteel

Steel QualityS315

Surface treatment EPZ

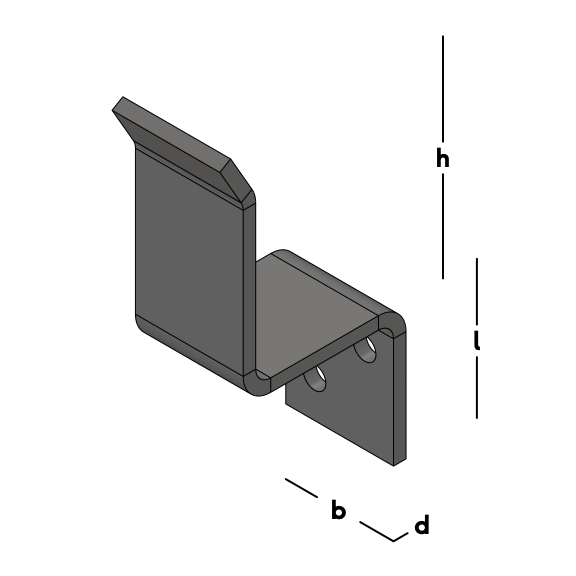

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Height	Receivers for	Hole pattern	Material	Steel Quality	Surface treatment
Door joist hook open	71490	20 per box	55 mm	45 mm	6 mm	75 mm	door bar max 55x75	2/9	Steel	S315
Door joist hook open	714908	10 per box	55 mm	45 mm	6 mm	75 mm	door bar max 55x75	2/9	Steel	S315
