Doorcatcher flat complete

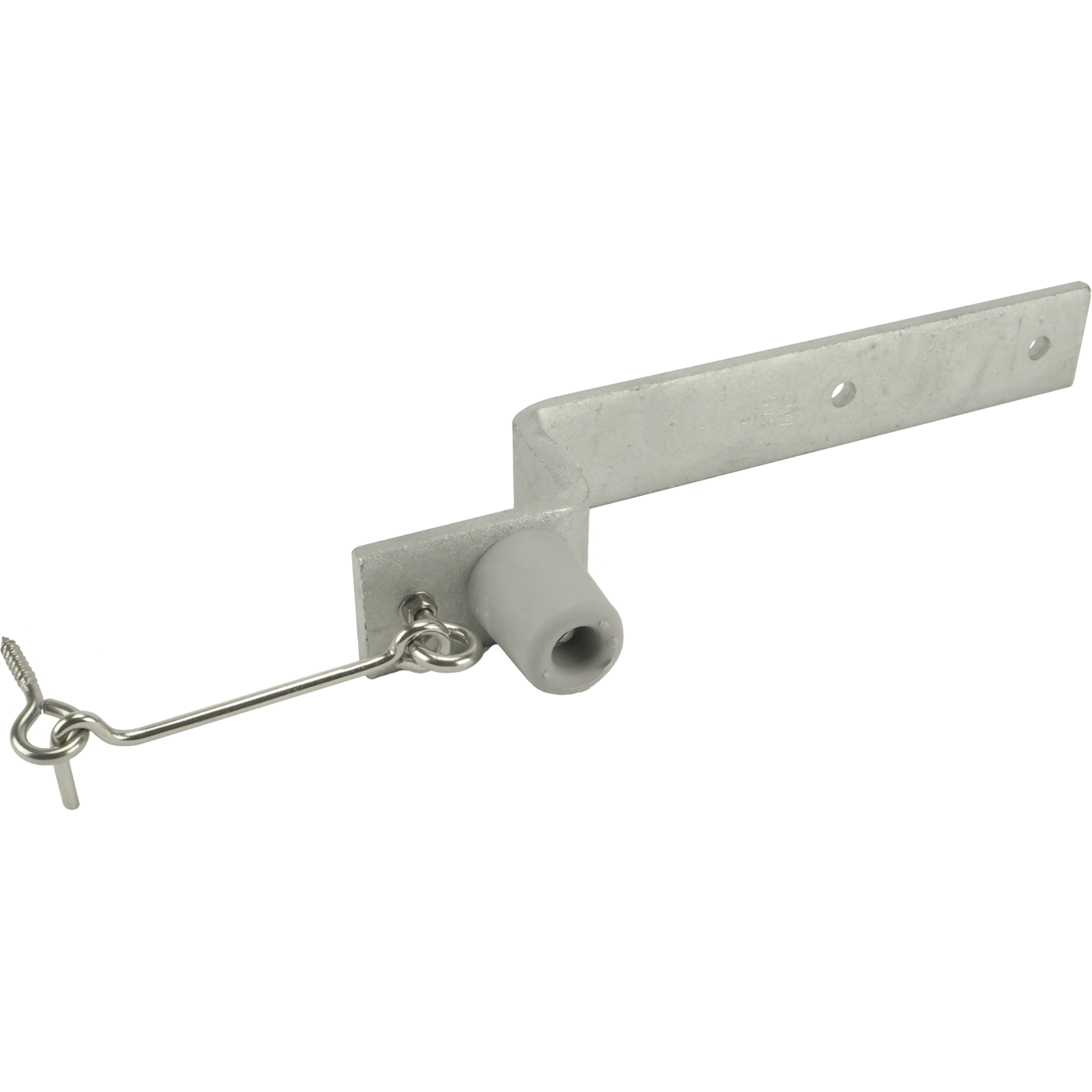

Door catch bracket, flat model. Suitable for mounting on the outside wall to catch an outward-swinging door. Includes door buffer and wind hook.

Length 1

Length 2

Width

30 mm

40 mm

50 mm

Thickness

4 mm

5 mm

8 mm

Material

RVS 304

Steel

Steel Quality

S235

S350

W-Nr.: 1.4301

Surface treatment

Details & dimensions

Article

Article number73480

EAN code8714318995270

Packaging

EAN code8714318995270

Packaging1 piece

Length280 mm

Width280 mm

Height40 mm

Dimensions

Doorcatcher flat complete

Length 1 (l1)280 mm

Length 2 (l2)215 mm

Width (b)40 mm

Thickness (d)8 mm

Height (h)50 mm

Buffer35x30x27

Hole pattern2/6,5-2/9

Length 3 (l3) (l3)60 mm

AttachmentsIncl. 1x buffer, 1 wind hook set 304 or EV

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Height	Buffer	Hole pattern	Length 3 (l3)	Between Size	Attachments	Material	Steel Quality	Surface treatment
Doorcatcher complete	72463	1 piece	275 mm	250 mm	40 mm	4 mm	-	35x30x27	7/6	220 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	RVS 304	W-Nr.: 1.4301	-
Doorcatcher square complete	72464	1 piece	275 mm	220 mm	40 mm	4 mm	-	35x30x27	6/6	330 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	RVS 304	W-Nr.: 1.4301	-
Doorcatcher small complete	73457	1 piece	82 mm	120 mm	40 mm	4 mm	-	35x30x27	7/6	55 mm	120 mm	Incl. 1x buffer, 1 wind hook set EV	Steel	S235
Doorcatcher small complete	73458	1 piece	82 mm	120 mm	50 mm	4 mm	-	35x30x27	7/6	55 mm	120 mm	Incl. 1x buffer, 1 wind hook set EV	Steel	S350
Doorcatcher open complete	73460	1 piece	150 mm	60 mm	30 mm	5 mm	-	35x30x27	2/5-1/10	230 mm	145 mm	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S235
Doorcatcher flat complete	73480	1 piece	280 mm	215 mm	40 mm	8 mm	50 mm	35x30x27	2/6,5-2/9	60 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S235
Doorcatcher heavy	73860	1 piece	100 mm	250 mm	50 mm	8 mm	-	35x30x27	3/6,5	240 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S235
Doorcatcher complete	74463	1 piece	275 mm	250 mm	40 mm	4 mm	-	35x30x27	7/6	220 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S235
Doorcatcher	744635	1 piece	275 mm	250 mm	50 mm	4 mm	-	35x30x27	7/6	220 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S350
Doorcatcher square complete	74464	1 piece	275 mm	250 mm	40 mm	4 mm	-	35x30x27	6/6	330 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S235
Doorcatcher square	744645	1 piece	275 mm	250 mm	50 mm	4 mm	-	35x30x27	6/6	330 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S350
Doorcatcher complete	74953	1 piece	275 mm	250 mm	40 mm	4 mm	-	35x30x27	7/6	220 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S350
Doorcatcher square complete	74954	1 piece	275 mm	220 mm	40 mm	4 mm	-	35x30x27	6/6	330 mm	-	Incl. 1x buffer, 1 wind hook set 304 or EV	Steel	S350
