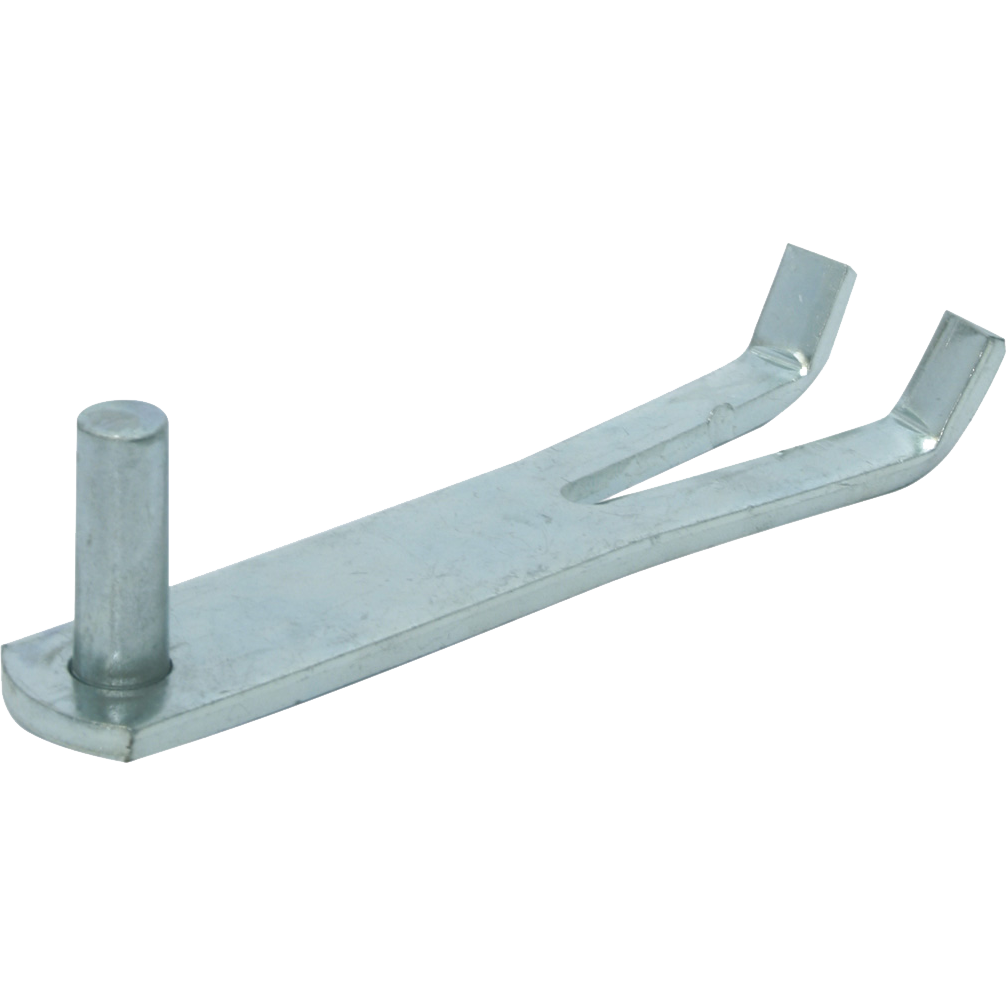

Anchor fluke 1/1 brick

Pin Ø 16mm fitted with a plate with clips for brickwork in a stone wall. For use in combination with a thumb handle.

Length

160 mm

210 mm

Surface treatment

EPZ

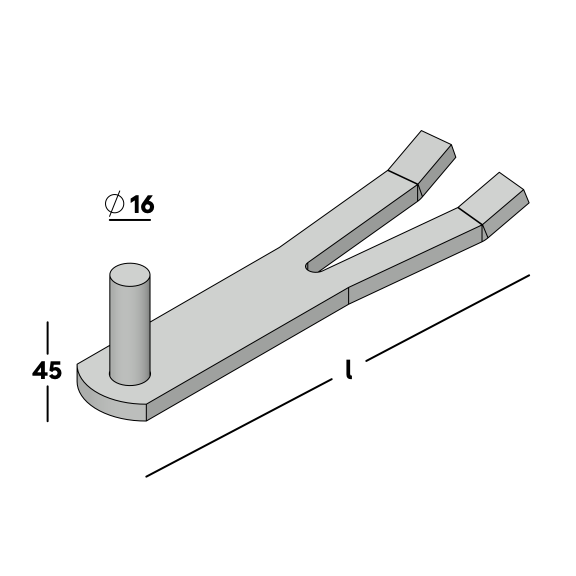

Details & dimensions

Article number49573

EAN code8714318007966

EAN code8714318107239

Packaging25 per box

Length330 mm

Width230 mm

Height130 mm

Length (l)210 mm

Size pinionØ16x45

MaterialSteel

Steel QualityS315

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Size pinion	Material	Steel Quality
Anchor fluke 1/2 brick	49462	10 per box	160 mm	Ø16x45	Steel	S315
Anchor fluke 1/2 brick	49463	50 per box	160 mm	Ø16x45	Steel	S315
Anchor fluke 1/1 brick	49473	25 per box	210 mm	Ø16x45	Steel	S315
Anchor fluke 1/1 brick	49474	10 per box	210 mm	Ø16x45	Steel	S315
Anchor fluke 1/2 brick	49563	50 per box	160 mm	Ø16x45	Steel	S315
Anchor fluke 1/1 brick	49573	25 per box	210 mm	Ø16x45	Steel	S315
