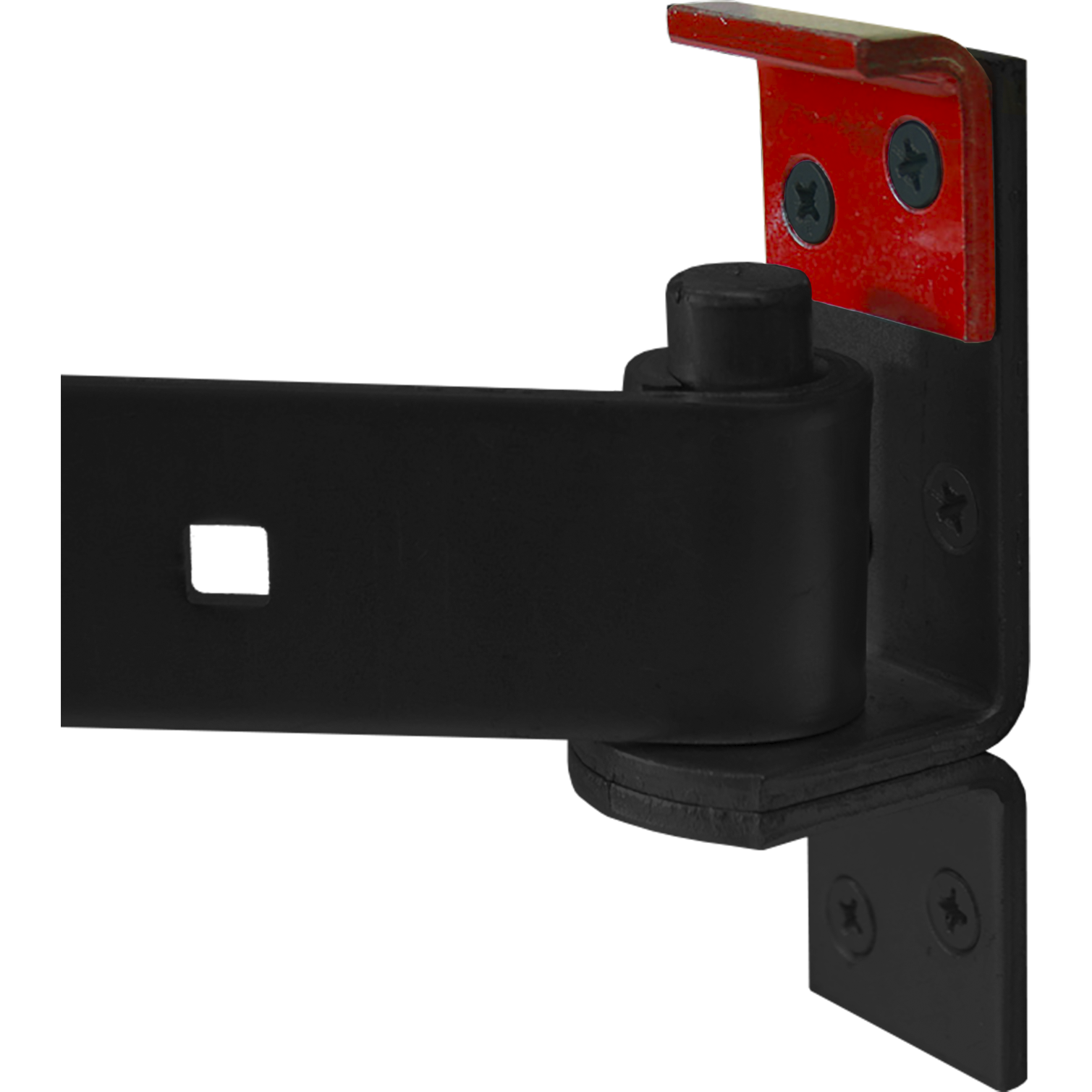

Hinge hook shelter
Steel Quality
DX51
S235
Surface treatment
EPZ-3
EV
TV
View all variants
Details & dimensions
Article
Article number
49203
EAN code
8714318085438
Packaging
EAN code
8714318085438
Packaging
1 piece
Length
155 mm
Width
110 mm
Height
115 mm

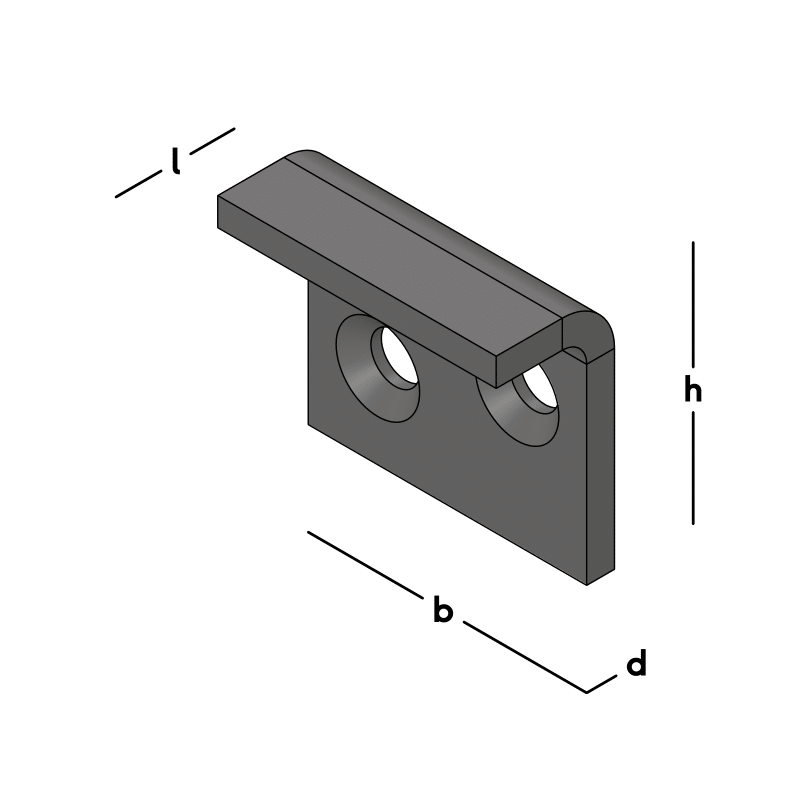

Dimensions
Hinge hook shelter
Length
(l)
17 mm
Width
(b)
40 mm
Thickness
(d)
4 mm
Height
(h)
35 mm
Hole pattern
2/7
Material
Steel
Steel Quality
S235
Surface treatment
Downloads
Drawings and models in 2D and 3D
Variants
3
Click on a variant to select it.
Name
Article number
Packaging
Lengte
Breedte
Dikte
Hoogte
Gatenpatroon
Materiaal
Staalkwaliteit
Oppervlaktebehandeling
Plaatduim beveiliging
49203
1 piece
17 mm
40 mm
4 mm
35 mm
2/7
Staal
S235
Plaatduim beveiliging
49202
20 per box
17 mm
40 mm
4 mm
35 mm
2/7
Staal
DX51
Plaatduim beveiliging
49200
20 per box
17 mm
40 mm
4 mm
35 mm
2/7
Staal
DX51
