Raised hook 35

Pin Ø 16mm fitted with a backplate with screw holes. With extra distance between the pin and the plate for use in a situation with a recessed negge. For use in combination with a thumb catch.

Steel Quality

S235

S315

Surface treatment

EPZ

Details & dimensions

Article

Article number499068

EAN code8714318065195

Packaging

EAN code8714318065201

Packaging10 per box

Length340 mm

Width260 mm

Height85 mm

Dimensions

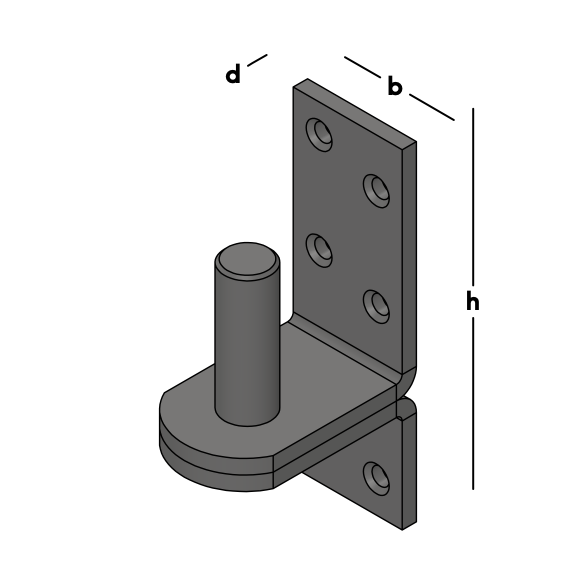

Raised hook 35

Width (b)38 mm

Thickness (d)5 mm

Height (h)117 mm

Hole pattern6/6

Backplate38x117 mm

Size pinionØ16x45

MaterialSteel

Steel QualityS315

Surface treatment EPZ

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Breedte	Dikte	Hoogte	Gatenpatroon	Achterplaat	Maat pen	Materiaal	Staalkwaliteit
Verhoogde plaatduim	49478	20 per box	38 mm	5 mm	117 mm	6/5,5	38x117 mm	Ø16x45	Staal	S235
Verhoogde plaatduim	49480	20 per box	38 mm	5 mm	117 mm	6/5,5	38x117 mm	Ø16x45	Staal	S235
Verhoogde plaatduim	49485	20 per box	38 mm	5 mm	117 mm	6/5,5	38x117 mm	Ø16x45	Staal	S235
Verhoogde plaatduim	499068	10 per box	38 mm	5 mm	117 mm	6/6	38x117 mm	Ø16x45	Staal	S315
Verhoogde plaatduim	499070	10 per box	38 mm	5 mm	117 mm	6/6	38x117 mm	Ø16x45	Staal	S315
Verhoogde plaatduim	499075	10 per box	38 mm	5 mm	117 mm	6/6	38x117 mm	Ø16x45	Staal	S315
