Verhoogde duim Rustica Ø16
Verhoogde duim Rustica Ø16

Raised hook 35

Pin Ø 16mm fitted with a Rustic-shaped backplate with screw holes. With extra distance between the pin and the plate for use in a situation with a recessed negge. For use in combination with a thumb handle.

Width
30 mm
38 mm

Details & dimensions

Article

Article number499468
EAN code8714318065294

Packaging

EAN code8714318065300
Packaging10 per box
Length390 mm
Width230 mm
Height75 mm

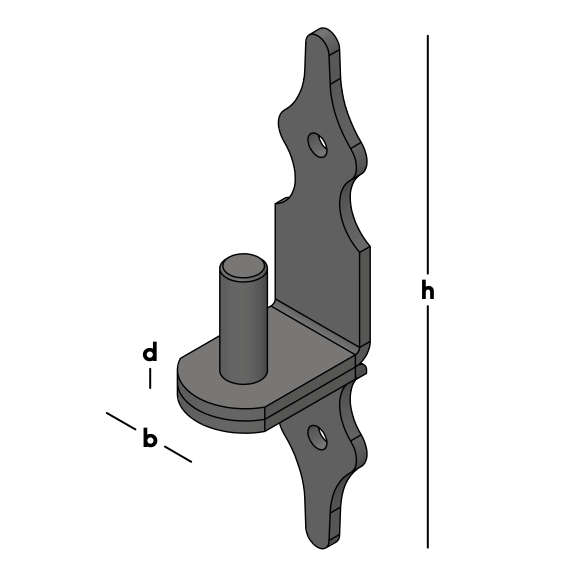

Dimensions

Raised hook 35

Width (b)38 mm
Thickness (d)5 mm
Hole pattern2/9
Backplate38x210 mm
Size pinionØ16x45
MaterialSteel
Steel QualityS315
Surface treatmentEPZ

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.
