Hinge with bend for pinion Ø16

Handle with bend for recessed and hinged fastening of gates and doors. For use in combination with a thumb Ø 16mm.

Length

Width

40 mm

45 mm

Thickness

5 mm

6 mm

Steel Quality

S235

S315

Surface treatment

EPZ

Details & dimensions

Article

Article number44419

EAN code8714318007775

Packaging

EAN code8714318107109

Packaging10 per bunch

Length1090 mm

Width190 mm

Height45 mm

Dimensions

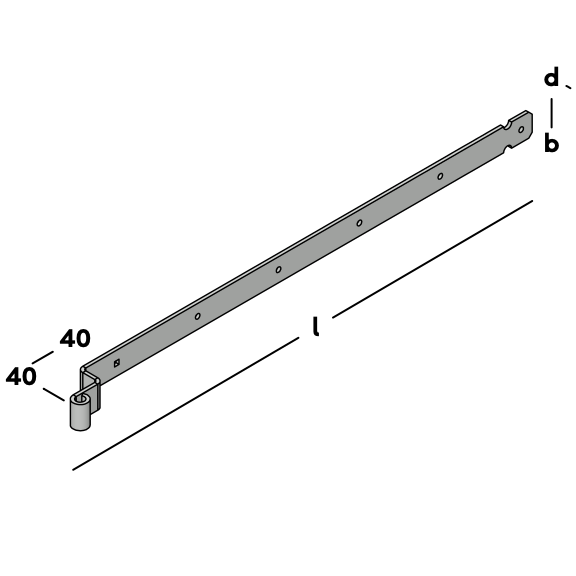

Hinge with bend for pinion Ø16

Length (l)950 mm

Width (b)45 mm

Thickness (d)6 mm

Hole pattern7/9

Square hole9x9 mm

Bend40x40 mm

For pinion ØØ16 mm

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Square hole	Bend	For pinion Ø	Material	Steel Quality
Hinge with bend for pinion Ø16	44307	10 per bunch	350 mm	40 mm	5 mm	3/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S315
Hinge with bend for pinion Ø16	44309	10 per bunch	450 mm	45 mm	6 mm	3/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44311	10 per bunch	550 mm	45 mm	6 mm	4/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44313	10 per bunch	650 mm	45 mm	6 mm	5/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44315	10 per bunch	750 mm	45 mm	6 mm	6/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44317	10 per bunch	850 mm	45 mm	6 mm	6/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44319	10 per bunch	950 mm	45 mm	6 mm	7/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44413	10 per bunch	650 mm	45 mm	6 mm	5/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44415	10 per bunch	750 mm	45 mm	6 mm	6/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44417	10 per bunch	850 mm	45 mm	6 mm	7/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	44419	10 per bunch	950 mm	45 mm	6 mm	7/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	449311	10 per box	550 mm	45 mm	6 mm	4/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	449313	10 per box	650 mm	45 mm	6 mm	5/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	449315	10 per box	750 mm	45 mm	6 mm	7/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	449317	1 piece	850 mm	45 mm	6 mm	7x9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
Hinge with bend for pinion Ø16	449319	1 piece	950 mm	45 mm	6 mm	8/9	9x9 mm	40x40 mm	Ø16 mm	Steel	S235
