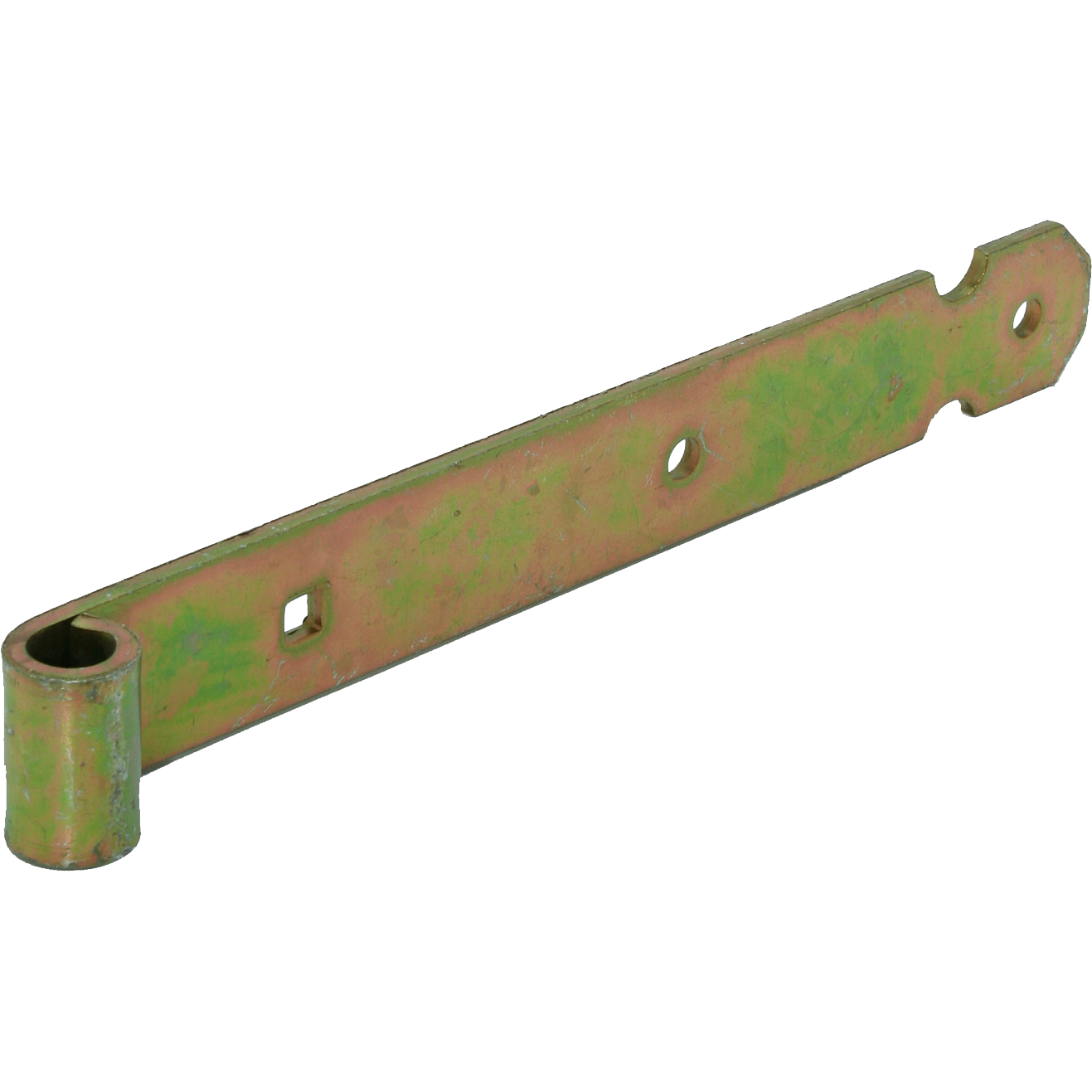

Hinge for pinion Ø13

Handle for use in combination with a thumb Ø 13mm. For hinged fastening of shutters and doors.

Length

Thickness

4 mm

5 mm

Material

RVS 304

Steel

Steel Quality

S315

W-Nr.:1.4307

Details & dimensions

Article number422507

EAN code8714318041106

EAN code8714318044244

Packaging10 per bunch

Length495 mm

Width80 mm

Height40 mm

Length (l)400 mm

Width (b)40 mm

Thickness (d)4 mm

Hole pattern3/7

Square hole9x9 mm

For pinion ØØ13 mm

MaterialRVS 304

Steel QualityW-Nr.:1.4307

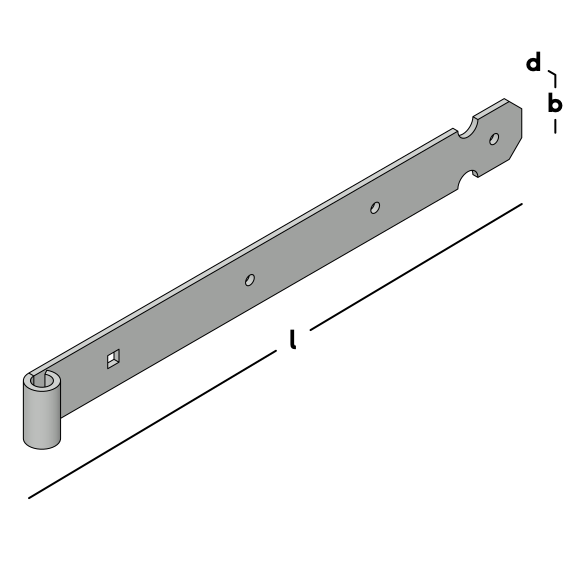

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Square hole	For pinion Ø	Material	Steel Quality	Surface treatment
Hinge for pinion Ø13	42225	10 per bunch	300 mm	40 mm	5 mm	2/9	9x9 mm	Ø13 mm	Steel	S315
Hinge for pinion Ø13	42227	10 per bunch	400 mm	40 mm	5 mm	3/9	9x9 mm	Ø13 mm	Steel	S315
Hinge for pinion Ø13	42229	10 per bunch	500 mm	40 mm	5 mm	3/9	9x9 mm	Ø13 mm	Steel	S315
Hinge for pinion Ø13	42231	10 per bunch	600 mm	40 mm	5 mm	4/9	9x9 mm	Ø13 mm	Steel	S315
Hinge for pinion Ø13	422507	10 per bunch	400 mm	40 mm	4 mm	3/7	9x9 mm	Ø13 mm	RVS 304	W-Nr.:1.4307	-
Hinge for pinion Ø13	422509	10 per bunch	500 mm	40 mm	4 mm	3/7	9x9 mm	Ø13 mm	RVS 304	W-Nr.:1.4307	-
Hinge for pinion Ø13	422511	10 per bunch	600 mm	40 mm	4 mm	3/7	5/9x9 mm	Ø13 mm	RVS 304	W-Nr.:1.4307	-
