Hinge with point for pinion Ø18

Handle with pointed end for a thumb with pin Ø 18mm. For hinged fastening of a gate or garden door.

Length

Details & dimensions

Article number45807

EAN code8714318070212

EAN code8714318070205

Packaging10 per bunch

Length610 mm

Width65 mm

Height30 mm

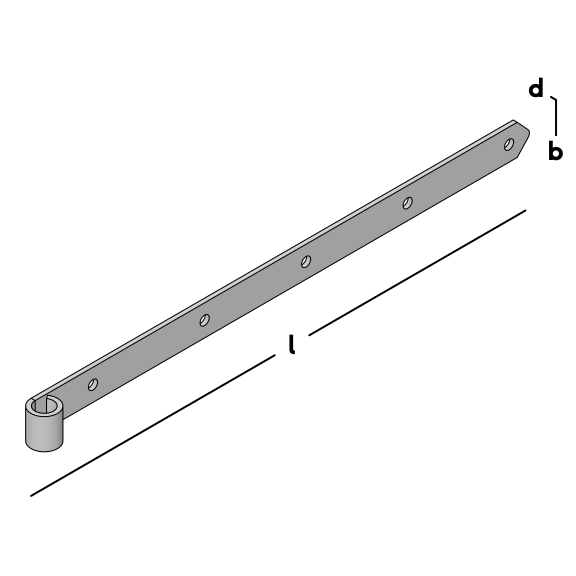

Length (l)500 mm

Width (b)30 mm

Thickness (d)4 mm

Hole pattern5/9

For pinion ØØ18 mm

MaterialSteel

Steel QualityS235

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	For pinion Ø	Material	Steel Quality
Hinge with point for pinion Ø18	45801	10 per bunch	200 mm	30 mm	4 mm	2/9	Ø18 mm	Steel	S235
Hinge with point for pinion Ø18	45802	10 per bunch	250 mm	30 mm	4 mm	3/9	Ø18 mm	Steel	S235
Hinge with point for pinion Ø18	45803	10 per bunch	300 mm	30 mm	4 mm	3/9	Ø18 mm	Steel	S235
Hinge with point for pinion Ø18	45804	10 per bunch	350 mm	30 mm	4 mm	4/9	Ø18 mm	Steel	S235
Hinge with point for pinion Ø18	45805	10 per bunch	400 mm	30 mm	4 mm	4/9	Ø18 mm	Steel	S235
Hinge with point for pinion Ø18	45807	10 per bunch	500 mm	30 mm	4 mm	5/9	Ø18 mm	Steel	S235
