Vlechtschermsteun
Vlechtschermsteun

U-shaped interwoven fence

Material
RVS 304
Steel
Steel Quality
DX51
W-Nr.: 1.4301
Surface treatment
304
GP

Details & dimensions

Article

Article number90004
EAN code8714318007423

Packaging

EAN code8714318106799
Packaging100 per box
Length290 mm
Width230 mm
Height130 mm

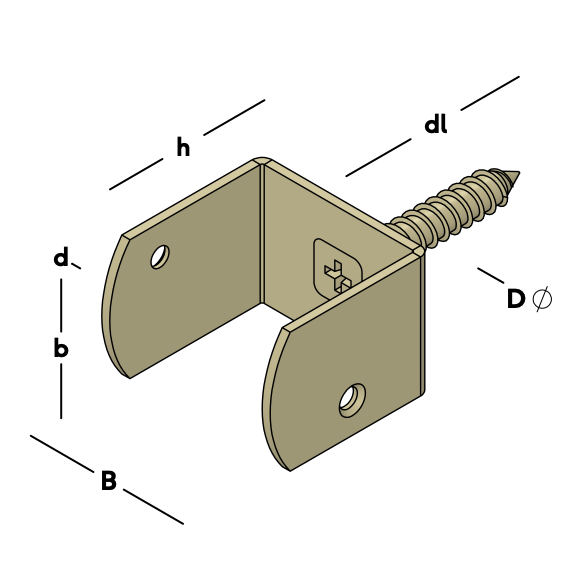

Dimensions

U-shaped interwoven fence

Width (b)30 mm
Thickness (d)2 mm
Height (h)35 mm
Diameter8 mm
Wire Length (dl)35 mm
Hole pattern2/4
Between Size38 mm
MaterialSteel
Steel QualityDX51
Surface treatmentGP

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.
