Gaaspaneelklem
Gaaspaneelklem

Metal wire mesh clip

Receivers for
Material
RVS 304
Steel
Surface treatment
ZM
ZM-4

Details & dimensions

Article

Article number91025
EAN code8714318056186

Packaging

EAN code8714318056193
Packaging100 per box
Length160 mm
Width110 mm
Height115 mm

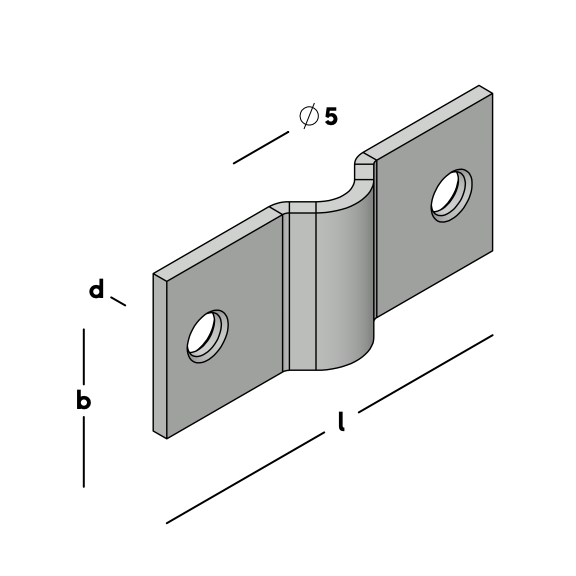

Dimensions

Metal wire mesh clip

Length (l)50 mm
Width (b)20 mm
Thickness (d)2 mm
Receivers forØ5 mm
Hole pattern2/5
MaterialRVS 304

Downloads

Drawings and models in 2D and 3D
