Kolomsteun

Adjustment plate

Length
100 mm
150 mm
Width
70 mm
100 mm

Details & dimensions

Article

Article number736930
EAN code8714318083908

Packaging

EAN code8714318129163
Packaging20 per box
Length220 mm
Width190 mm
Height145 mm

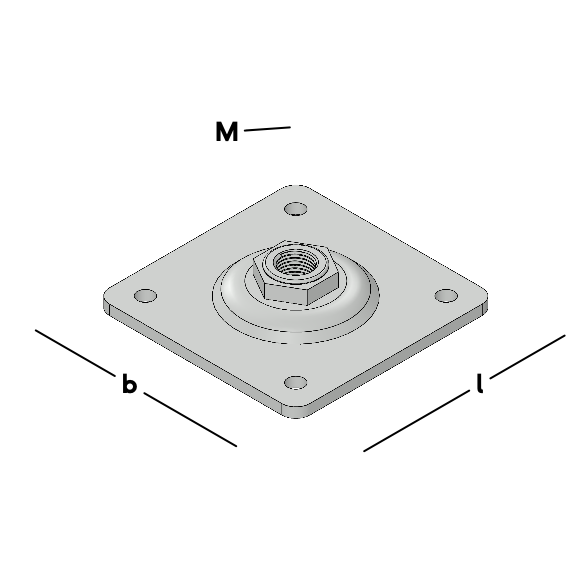

Dimensions

Adjustment plate

Length (l)100 mm
Width (b)100 mm
Hole pattern4/8
Metric thread (M)16 M
MaterialSteel
Steel QualityS235
Surface treatmentEV-2

Downloads

Drawings and models in 2D and 3D

DWG
IFC
STP
PDF
