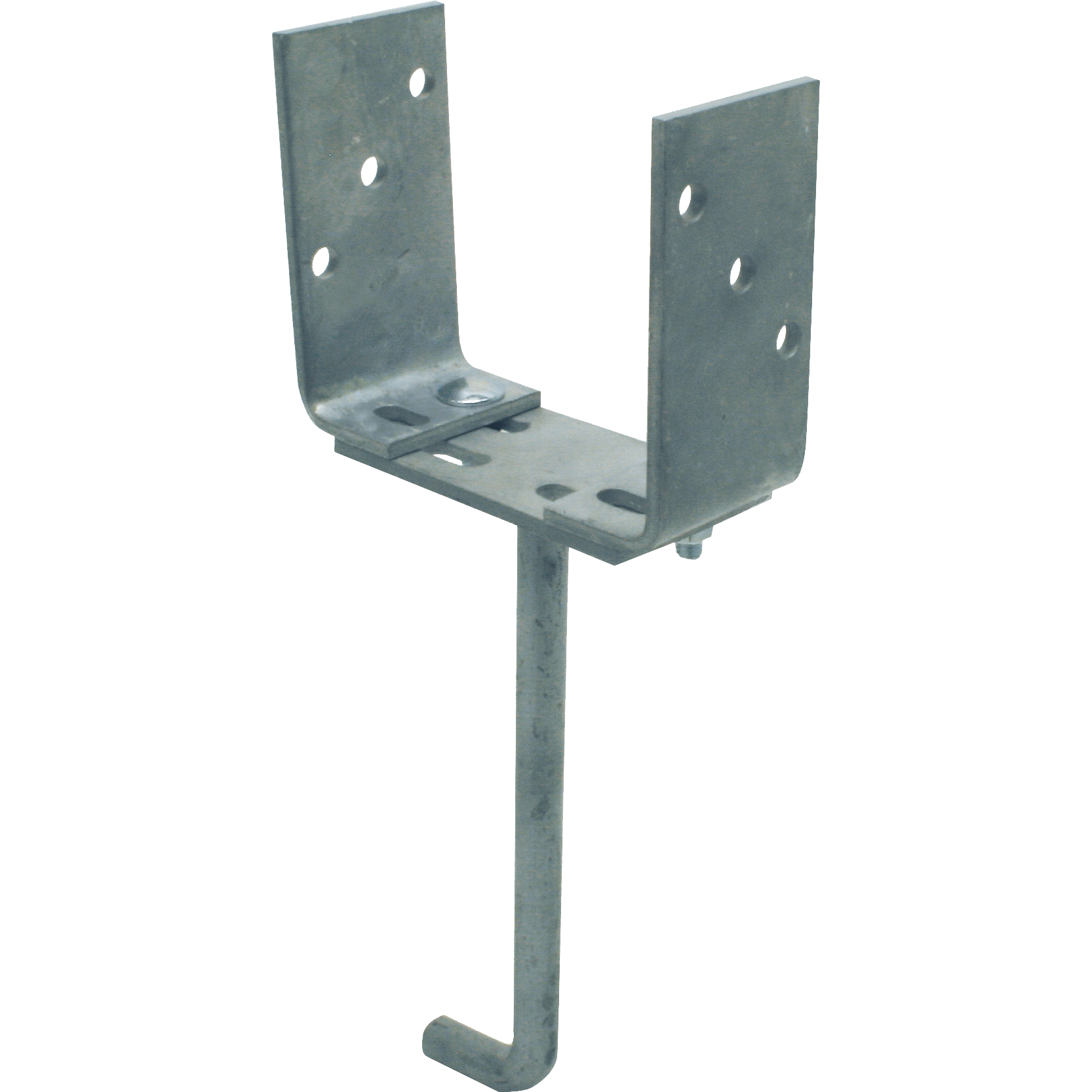

Post support bracket

Width-adjustable post holder for wooden columns. Equipped with anchor pin that can be embedded in a concrete floor.

Width

60 mm

100 mm

Slotted hole

2/25x9-2/30x9 mm

4/20x9-4/25x9 mm

Surface treatment

TV-3

Details & dimensions

Article number744591

EAN code8714318051952

EAN code8714318051952

Packaging1 piece

Length235 mm

Width150 mm

Height65 mm

Width (b)60 mm

Thickness (d)5 mm

Slotted hole4/20x9-4/25x9 mm

Hole pattern6/9

MaterialSteel

Steel QualityS235

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Height	Slotted hole	Hole pattern	Metric thread	Attachments	Material	Steel Quality
Pergola support vertically adjustab	736910	10 per box	100 mm	100 mm	-	200 mm	-	8/11	20 M	including plate 80x80 mm bolt M20	Steel	S235
Post support bracket	74459	1 piece	-	60 mm	5 mm	-	4/20x9-4/25x9 mm	6/9	-	-	Steel	S235
Post support bracket	744591	1 piece	-	60 mm	5 mm	-	4/20x9-4/25x9 mm	6/9	-	-	Steel	S235
Post support bracket	744592	1 piece	-	60 mm	5 mm	-	4/20x9-4/25x9 mm	6/9	-	-	Steel	S235
Post support bracket	744593	1 piece	-	60 mm	5 mm	-	4/20x9-4/25x9 mm	6/9	-	-	Steel	S235

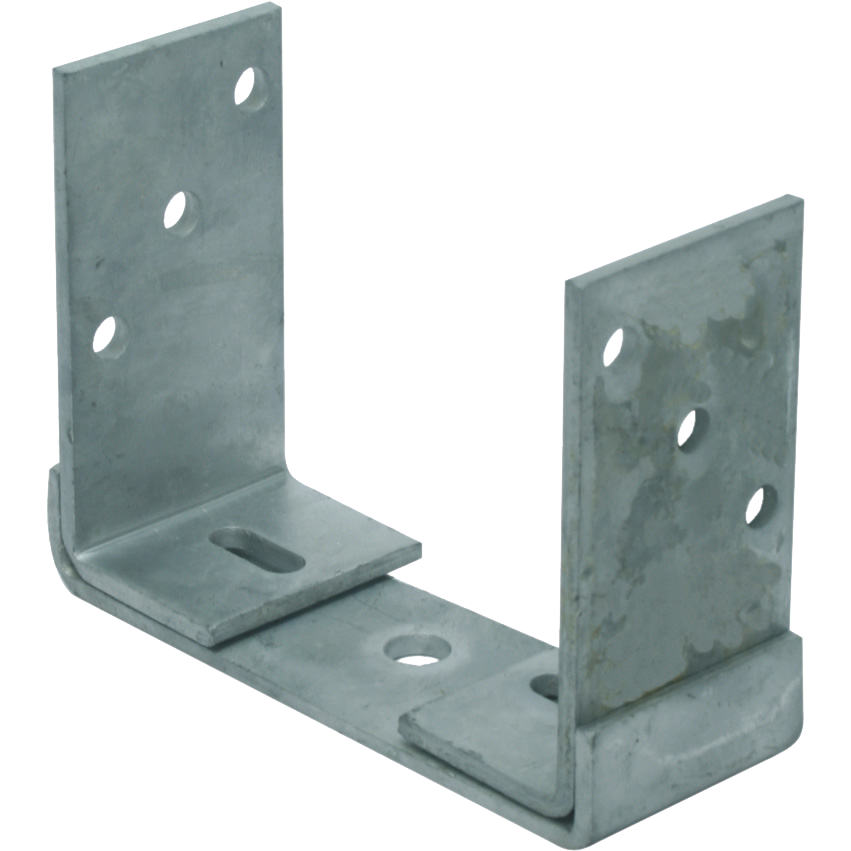

Post support bracket	74460	1 piece	-	60 mm	5 mm	-	2/25x9-2/30x9 mm	6/9-1/13	-	-	Steel	S235
