Crank for Farmer door locking

Loose handle for a farmer's latch set.

Length

Width

Diameter

3,2 mm

12 mm

50 mm

Material

RVS 304

Steel

Steel Quality

Surface treatment

Details & dimensions

Article number70422

EAN code8714318008642

EAN code8714318008642

Packaging1 piece

Length110 mm

Width110 mm

Height10 mm

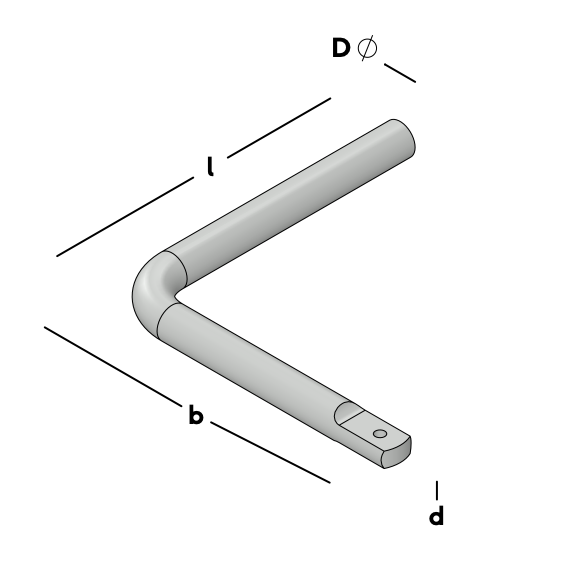

Length (l)110 mm

Width (b)115 mm

Diameter12 mm

Hole pattern1/3,8

MaterialSteel

Steel QualityS235

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Diameter	Hole pattern	Material	Steel Quality
Crank for Farmer door locking	70422	1 piece	110 mm	115 mm	-	12 mm	1/3,8	Steel	S235
Crank for Farmer door locking	704224	1 piece	140 mm	115 mm	-	12 mm	1/3,8	Steel	S235
Crank for Farmer door locking	704226	1 piece	165 mm	115 mm	-	12 mm	1/3,8	Steel	S235
Crank for Farmer door locking	704228	1 piece	200 mm	115 mm	-	12 mm	1/3,5	Steel	S235
Crank for Farmer door locking	704231	1 piece	110 mm	115 mm	-	12 mm	1/3,8	Steel	S235
Crank for Farmer door locking	704234	1 piece	140 mm	115 mm	-	12 mm	1/3,8	Steel	S235
Crank for Farmer door locking	704236	1 piece	165 mm	115 mm	-	12 mm	1/3,8	Steel	S235
Crank for Farmer door locking	704238	1 piece	200 mm	115 mm	-	12 mm	1/3,5	Steel	S235
Back sheet for Farmer door locking	70424	1 piece	125 mm	85 mm	-	-	6/4	Steel	S350
Cotter pin	70427	1 piece	32 mm	-	-	3,2 mm	-	RVS 304	W-Nr.: 1.4301
Collar for Farmer door locking	704230	25 per bag	-	20 mm	-	-	-	Steel	S235
Small plate for Farmer door locking	70425	1 piece	-	-	-	50 mm	4/4-1/13	Steel	DX51
Handle for Farmer door locking	704210	1 piece	180 mm	25 mm	5 mm	-	-	Steel	S235
