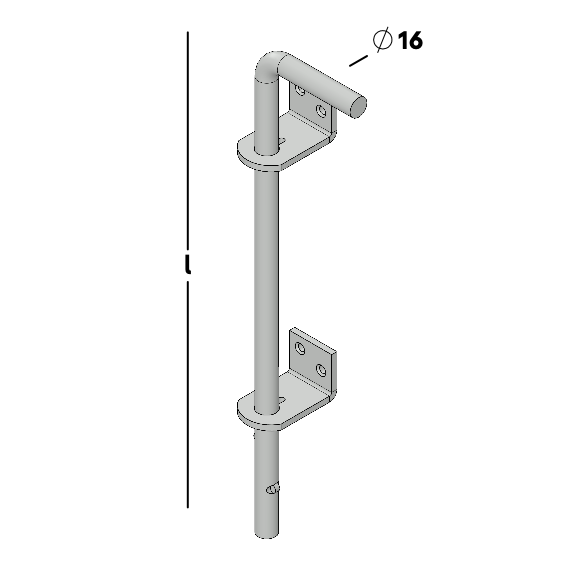

Ground locking bolt
Length
38 mm
400 mm
Steel Quality
DX51
S235
Surface treatment
EPZ
EV
TV-3
View all variants
Details & dimensions
Article
Article number
74433
EAN code
8714318098285
Packaging
EAN code
8714318098292
Packaging
5 per box
Length
425 mm
Width
140 mm
Height
65 mm
Dimensions
Ground locking bolt
Hole pattern
4/6-2/17
Material
Steel
Steel Quality
S235
Surface treatment
Downloads
Drawings and models in 2D and 3D
Variants
4
Click on a variant to select it.
Name
Article number
Packaging
Lengte
Breedte
Dikte
Hoogte
Gatenpatroon
Maat pen
Materiaal
Staalkwaliteit
Oppervlaktebehandeling
Grondgrendel
74432
5 per box
400 mm
-
-
-
4/6-2/17
Ø16 mm
Staal
S235
Hoekstuk tbv grondgrendel
7443230
1 piece
38 mm
40 mm
5 mm
65 mm
2/6 1/17
-
Staal
DX51
Grondgrendel
744328
5 per box
400 mm
-
-
-
4/6-2/17
Ø16 mm
Staal
S235
Grondgrendel
74433
5 per box
-
-
-
-
4/6-2/17
-
Staal
S235
