Beugel grendels
Beugel grendels

Handle

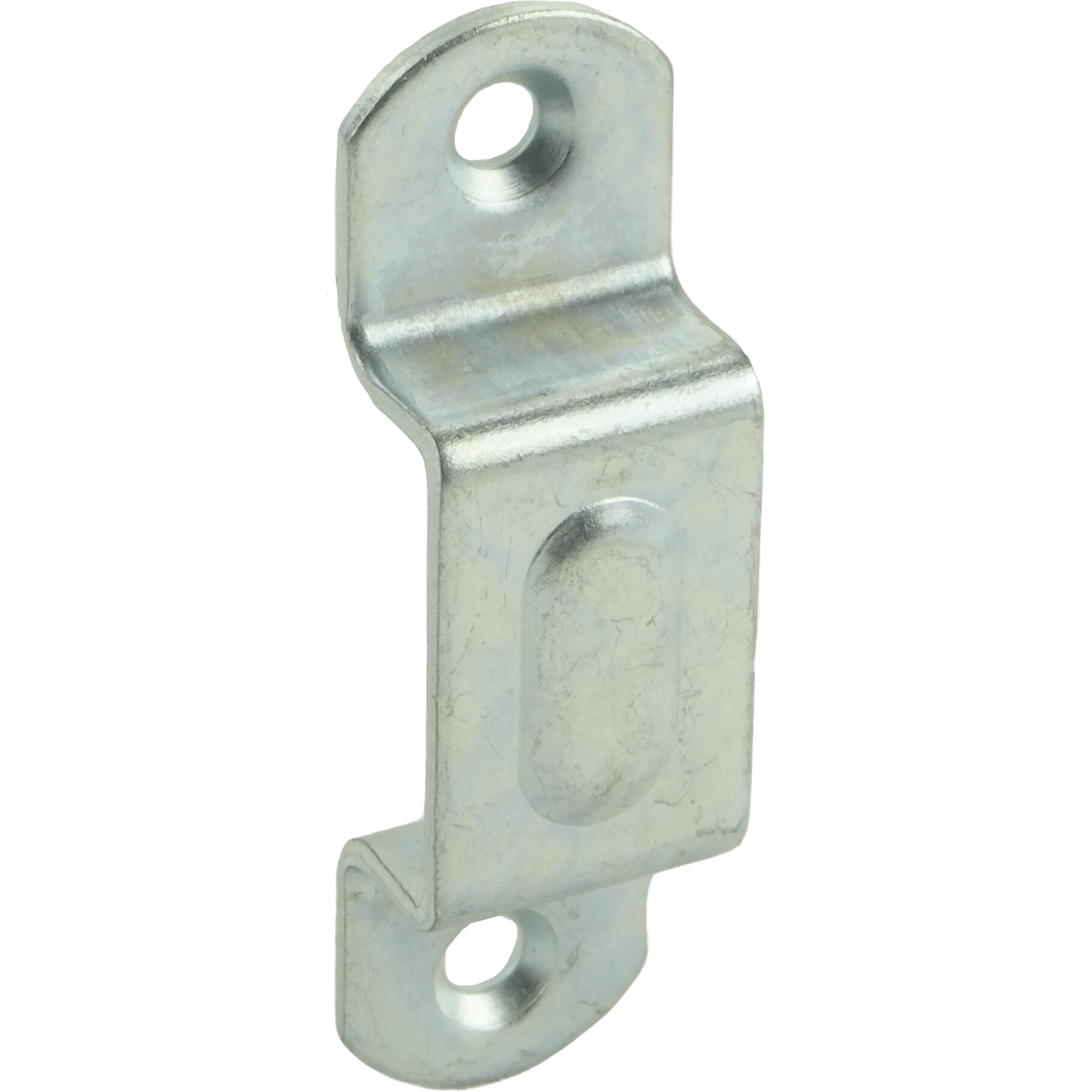

Locking bracket for a roller shutter.

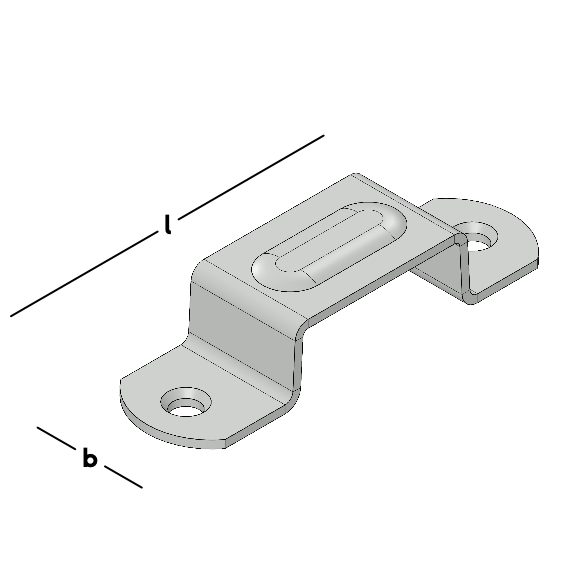

Length
Width
15 mm
20 mm

Details & dimensions

Article

Article number7449903
EAN code8714318117184

Packaging

EAN code8714318117184
Packaging1 piece
Length70 mm
Width20 mm
Height8 mm

Dimensions

Handle

Length70 mm
Width20 mm
Hole pattern2/5
MaterialSteel
Steel QualityDX51
Surface treatmentEV

Downloads

Drawings and models in 2D and 3D

DWG

Processing & accessories

You can use the products below to place or confirm the product correctly.

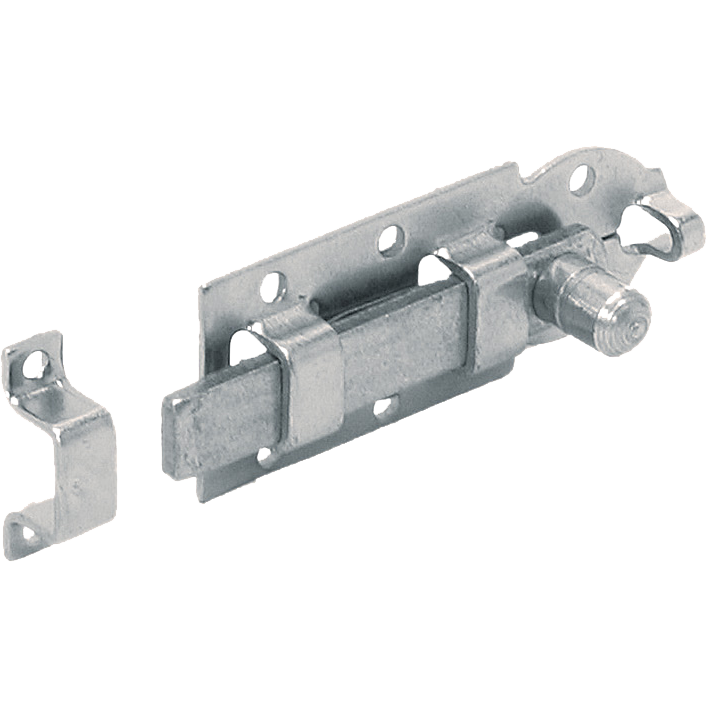

Sliding latch plane
