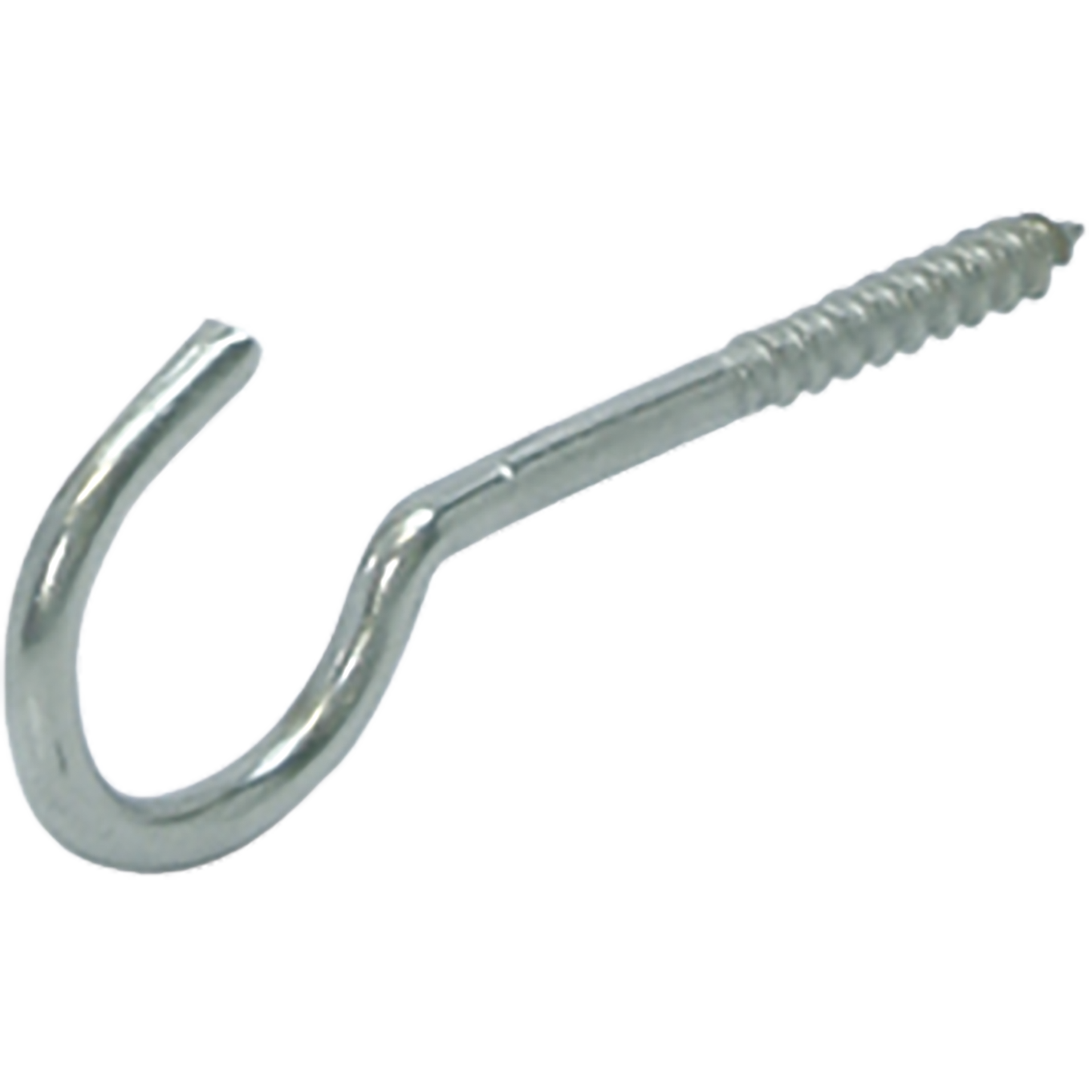

Cup hook heavy duty

Heavy duty self-tapping cup hook for creating extra strong attachment points. Suitable for both wall and ceiling applications. Available in various sizes in galvanized or stainless steel.

Length 1

Length 2

Diameter

Material

RVS 304

Steel

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

304

EPW

Details & dimensions

Article

Article number80030247

EAN code8714318012908

Packaging

EAN code8714318111557

Packaging100 per box

Length105 mm

Width70 mm

Height80 mm

Dimensions

Cup hook heavy duty

Length 150 mm

Length 216 mm

Diameter4,2 mm

Maximum pulling force12,5 kg

Wood Wire5,5 Ht

Size eye16 Ø

MaterialRVS 304

Steel QualityW-Nr.: 1.4301

Surface treatment 304

Name	Article number	Packaging	Length 1	Length 2	Diameter	Maximum pulling force	Wood Wire	Size eye	Material	Steel Quality
Cup hook heavy duty	80030208	100 per box	50 mm	15 mm	4,4 mm	12,5 kg	5 Ht	16 Ø	Steel	DX51
Cup hook heavy duty	80030211	100 per box	60 mm	18 mm	4,75 mm	12,5 kg	5 Ht	18 Ø	Steel	DX51
Cup hook heavy duty	80030217	100 per box	80 mm	25 mm	5,8 mm	25 kg	5,8 Ht	25 Ø	Steel	DX51
Cup hook heavy duty	80030223	100 per box	100 mm	36 mm	6 mm	35 kg	6 Ht	25 Ø	Steel	DX51
Cup hook heavy duty	80030220	100 per box	90 mm	30 mm	5,8 mm	35 kg	5,8 Ht	25 Ø	Steel	DX51
Cup hook heavy duty	80030226	50 per box	100 mm	36 mm	6,8 mm	60 kg	6,8 Ht	25 Ø	Steel	DX51
Cup hook heavy duty	80030229	100 per box	120 mm	36 mm	6 mm	35 kg	6 Ht	25 Ø	Steel	DX51
Cup hook heavy duty	80030232	100 per box	140 mm	36 mm	7 mm	60 kg	7 Ht	25 Ø	Steel	DX51
Cup hook heavy duty	80030235	100 per box	160 mm	36 mm	7 mm	60 kg	7 Ht	25 Ø	Steel	DX51
Cup hook heavy duty	80030247	100 per box	50 mm	16 mm	4,2 mm	12,5 kg	5,5 Ht	16 Ø	RVS 304	W-Nr.: 1.4301
Cup hook heavy duty	80030250	100 per box	65 mm	21 mm	4,7 mm	15 kg	6 Ht	22 Ø	RVS 304	W-Nr.: 1.4301
Cup hook heavy duty	80030253	100 per box	80 mm	24 mm	5,2 mm	25 kg	6,4 Ht	25 Ø	RVS 304	W-Nr.: 1.4301
Cup hook heavy duty	80030256	50 per box	100 mm	32 mm	5,8 mm	35 kg	5,8 Ht	25 Ø	RVS 304	W-Nr.: 1.4301
Cup hook heavy duty	80030274	100 per box	80 mm	25 mm	6 mm	25 kg	6 Ht	25 Ø	Steel	DX51
