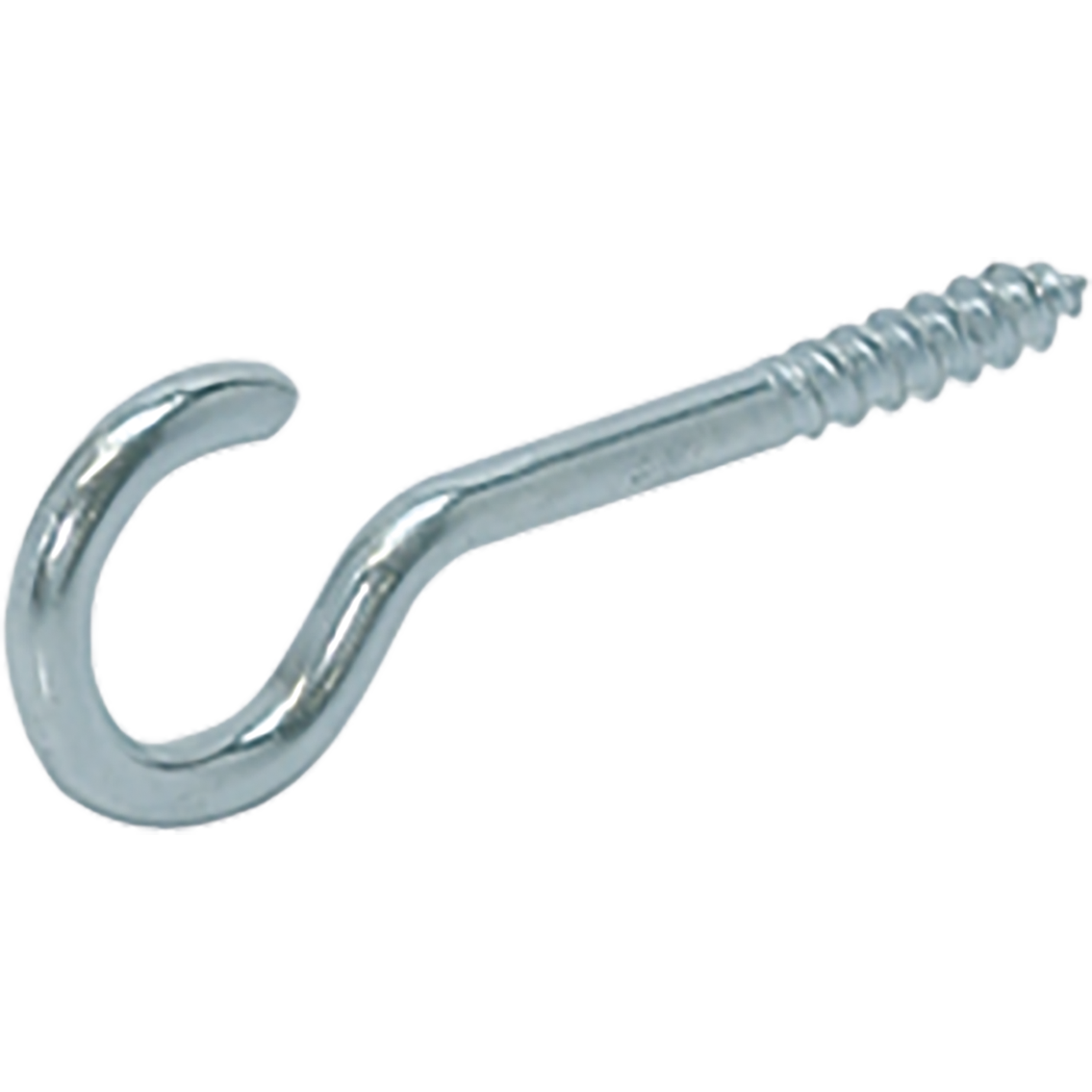

Cup hook with small hook

Name: Cup hook with small hook
SKU: 80030178

Self-tapping cup hook with small hook for creating strong attachment points. Suitable for both wall and ceiling applications. Available in various sizes.

Length 1

Length 2

Diameter

Details & dimensions

Article

Article number80030178

EAN code8714318012755

Packaging

EAN code8714318111373

Packaging100 per box

Length120 mm

Width78 mm

Height60 mm

Dimensions

Cup hook with small hook

Length 1 (l1)60 mm

Length 2 (l2)20 mm

Diameter4 mm

Wood Wire4,6 Ht

Size eye14 Ø

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length 1	Length 2	Diameter	Wood Wire	Size eye	Material	Steel Quality	Surface treatment
Cup hook with small hook	80030172	100 per box	40 mm	16 mm	3,2 mm	4 Ht	8 Ø	Steel	DX51	EV
Cup hook with small hook	80030175	100 per box	50 mm	16 mm	3,3 mm	4,2 Ht	16 Ø	Steel	DX51	EV
Cup hook with small hook	80030178	100 per box	60 mm	20 mm	4 mm	4,6 Ht	14 Ø	Steel	DX51	EV
Cup hook with small hook	80030181	100 per box	70 mm	20 mm	3,8 mm	4,8 Ht	16 Ø	Steel	DX51	EV
Cup hook with small hook	80030184	100 per box	80 mm	25 mm	4 mm	4,6 Ht	14 Ø	Steel	DX51	EV
Cup hook with small hook	80030187	100 per box	100 mm	30 mm	4 mm	5 Ht	16 Ø	Steel	DX51	EV
Cup hook with small hook	80030190	100 per box	120 mm	36 mm	4 mm	5 Ht	16 Ø	Steel	DX51	EV
