Cup hook with wood grain with

Self-tapping cup hook with shoulder for creating strong attachment points. Suitable for both wall and ceiling applications. The shoulder provides additional stability and prevents the eye from turning too deeply into the surface. Available in various sizes.

Length 1

20 mm

25 mm

30 mm

Length 2

11 mm

13 mm

14 mm

Diameter

2,4 mm

3,2 mm

3,3 mm

Surface treatment

Details & dimensions

Article

Article number80030319

EAN code8714318014254

Packaging

EAN code8714318112806

Packaging100 per box

Length95 mm

Width70 mm

Height50 mm

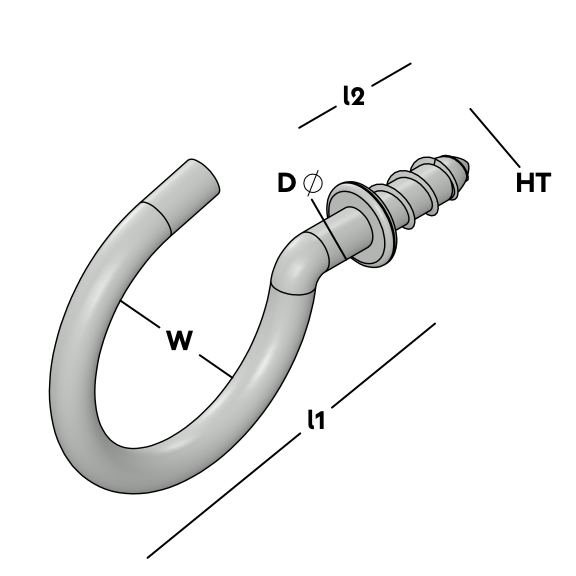

Dimensions

Cup hook with wood grain with

Length 130 mm

Length 211 mm

Diameter3,2 mm

Wood Wire4 Ht

Size eye19 Ø

MaterialSteel

Steel QualityDX51

Surface treatmentVM

Name	Article number	Packaging	Length 1	Length 2	Diameter	Wood Wire	Size eye	Material	Steel Quality	Surface treatment
Cup hook with wood grain with	80030319	100 per box	30 mm	11 mm	3,2 mm	4 Ht	19 Ø	Steel	DX51	VM
Cup hook with wood grain with	80030316	100 per box	25 mm	13 mm	3,2 mm	3,7 Ht	12 Ø	Steel	DX51	VM
Cup hook with wood grain with	80030296	100 per box	30 mm	14 mm	3,3 mm	4,2 Ht	16 Ø	Steel	DX51
Cup hook with wood grain with	80030293	100 per box	25 mm	13 mm	3,2 mm	3,7 Ht	12 Ø	Steel	DX51
Cup hook with wood grain with	80030290	100 per box	20 mm	11 mm	2,4 mm	3,1 Ht	9 Ø	Steel	DX51
