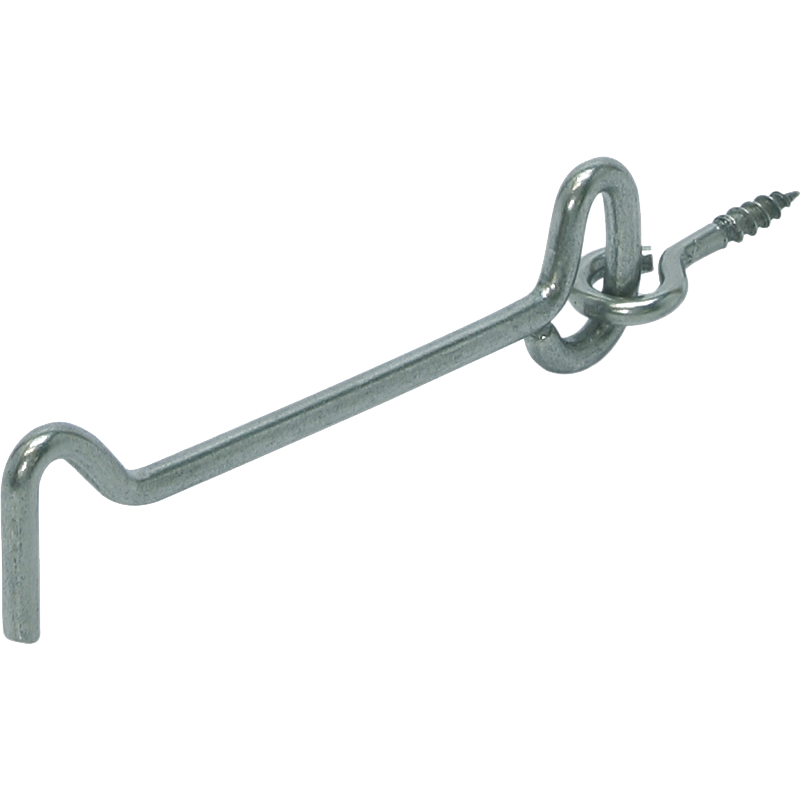

Gate hook and eye

Length

Length 1

Length 2

30 mm

40 mm

Diameter

Material

RVS 304

Steel

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

304

Details & dimensions

Article

Article number80061037

EAN code8714318015220

Packaging

EAN code8714318114015

Packaging10 per box

Length520 mm

Width90 mm

Height80 mm

Dimensions

Gate hook and eye

Length500 mm

Diameter8 mm

Wood Wire9,0 Ht

Typehoutdraad - houtdraad

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length	Length 1	Length 2	Diameter	Wood Wire	Metric thread	Type	Material	Steel Quality
Gate hook and eye	80061013	100 per box	80 mm	-	-	3,9 mm	4,2 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061016	50 per box	100 mm	-	-	4 mm	5,1 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061019	50 per box	125 mm	-	-	4,2 mm	5,1 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061021	50 per box	140 mm	-	-	5 mm	5,1 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061022	25 per box	160 mm	-	-	5,2 mm	5,5 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061025	25 per box	200 mm	-	-	5,8 mm	6,5 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061028	25 per box	250 mm	-	-	5,8 mm	7,6 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061031	25 per box	300 mm	-	-	5,8 mm	7,6 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061034	10 per box	400 mm	-	-	8 mm	9,0 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061037	10 per box	500 mm	-	-	8 mm	9,0 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061040	10 per bunch	600 mm	-	-	8 mm	9,0 Ht	-	houtdraad - houtdraad	Steel	DX51
Gate hook and eye	80061069	50 per box	100 mm	-	-	3,9 mm	5,1 Ht	-	houtdraad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye	80061072	25 per box	160 mm	-	-	5,2 mm	5,5 Ht	-	houtdraad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye	80061075	25 per box	200 mm	-	-	5,8 mm	6,5 Ht	-	houtdraad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye	80061078	25 per box	250 mm	-	-	5,8 mm	7,6 Ht	-	houtdraad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye	80061081	25 per box	300 mm	-	-	5,8 mm	7,6 Ht	-	houtdraad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye, with wood grain	80061531	50 per box	-	100 mm	30 mm	3,9 mm	5,1 Ht	5 M	metrisch draad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye, with wood grain	80061534	25 per box	-	160 mm	40 mm	5,2 mm	5,5 Ht	6 M	metrisch draad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye, with wood grain	80061537	25 per box	-	200 mm	40 mm	5,8 mm	6,5 Ht	6 M	metrisch draad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye, with wood grain	80061540	25 per box	-	250 mm	40 mm	5,8 mm	7,6 Ht	6 M	metrisch draad - houtdraad	RVS 304	W-Nr.: 1.4301
Gate hook and eye, with wood grain	80061543	25 per box	-	300 mm	40 mm	5,8 mm	7,6 Ht	6 M	metrisch draad - houtdraad	RVS 304	W-Nr.: 1.4301
