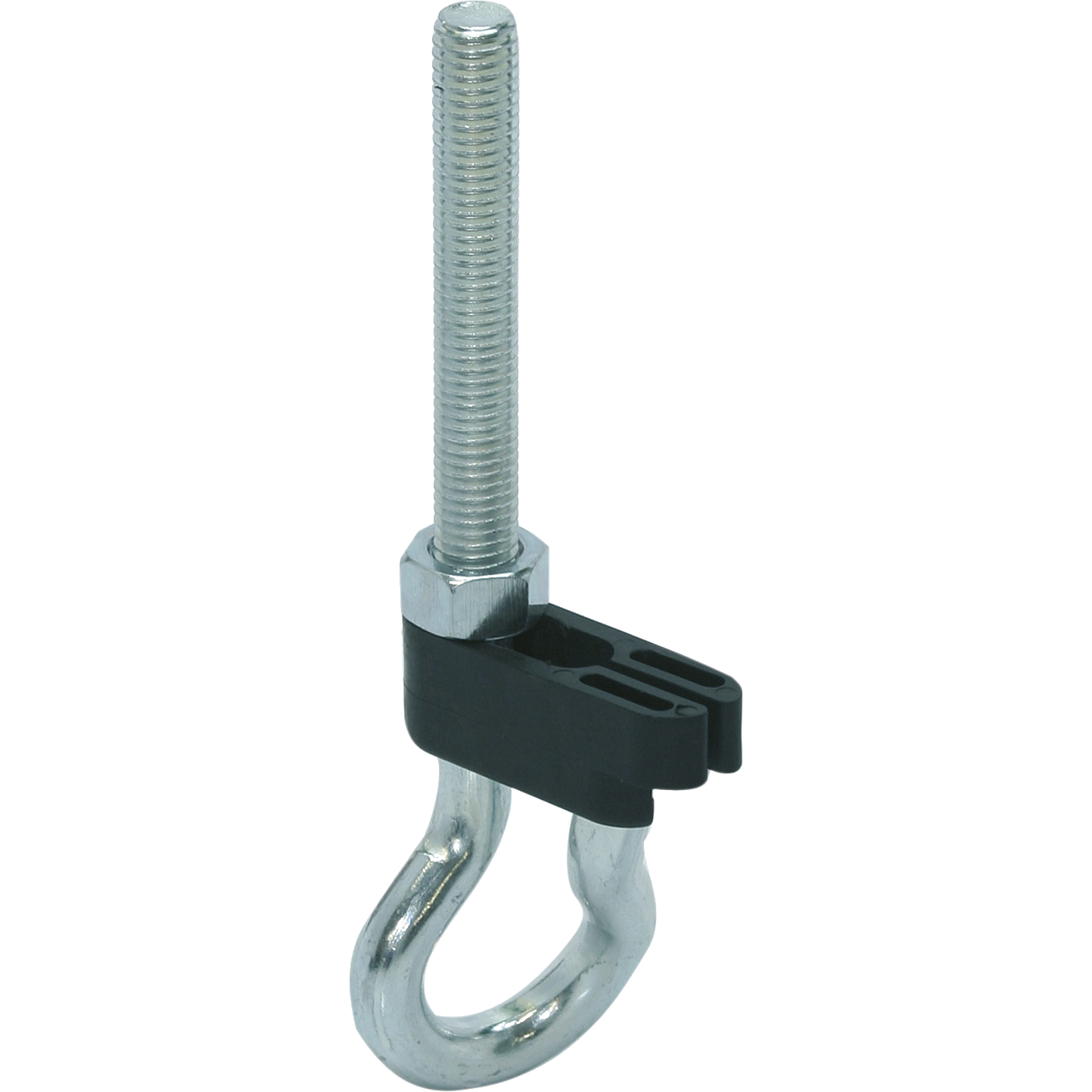

Safety swing hook

Name: Safety swing hook
SKU: 80045001

Threaded swing hook including safety clip. Available in various sizes.

Length 1

Length 2

Details & dimensions

Article number80045001

EAN code8714318013080

EAN code8714318111731

Packaging10 per box

Length255 mm

Width80 mm

Height90 mm

Length 1 (l1)160 mm

Length 2 (l2)83 mm

Diameter10,6 mm

Maximum pulling force175 kg

Metric thread (M)12 M

Size eye22 Ø

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length 1	Length 2	Diameter	Maximum pulling force	Wood Wire	Metric thread	Size eye	Material	Steel Quality	Surface treatment
Safety swing hook	80045007	10 per box	250 mm	172 mm	10,6 mm	175 kg	-	12 M	22 Ø	Steel	DX51	EV
Safety swing hook	80045004	10 per box	180 mm	113 mm	10,6 mm	175 kg	-	12 M	22 Ø	Steel	DX51	EV
Safety swing hook	80045001	10 per box	160 mm	83 mm	10,6 mm	175 kg	-	12 M	22 Ø	Steel	DX51	EV
Safety swing hook with wood grain	80040004	10 per box	150 mm	50 mm	10,6 mm	175 kg	10,6 Ht	-	22 Ø	Steel	DX51	EV
Safety swing hook with wood grain	80040001	10 per box	130 mm	45 mm	10,6 mm	175 kg	10,6 Ht	-	22 Ø	Steel	DX51	EV
