Meat hook

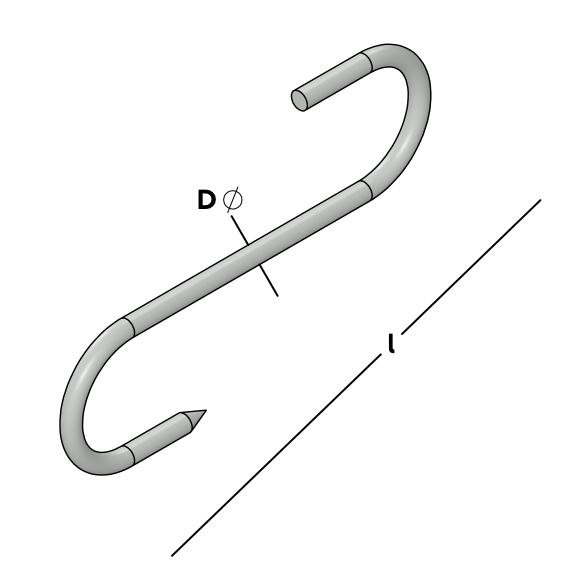

The meat hook (S-hook) has a blunt and sharp side for hanging various materials. Available in various sizes and tensile forces. Both galvanized and in stainless steel.

Length

Diameter

Material

RVS 304

Steel

Steel Quality

DX51

W-Nr.: 1.4301

Surface treatment

304

Details & dimensions

Article

Article number85003

EAN code8714318015718

Packaging

EAN code8714318114503

Packaging10 per box

Length125 mm

Width60 mm

Height47 mm

Dimensions

Meat hook

Length120 mm

Diameter4,8 mm

Maximum pulling force15 kg

Size eye30 Ø

MaterialSteel

Steel QualityDX51

Surface treatmentVT

Name	Article number	Packaging	Length	Diameter	Maximum pulling force	Size eye	Material	Steel Quality	Surface treatment
Meat hook	85001	10 per box	80 mm	4 mm	10 kg	20 Ø	Steel	DX51	VT
Meat hook	85002	10 per box	100 mm	4,4 mm	12,5 kg	26 Ø	Steel	DX51	VT
Meat hook	85003	10 per box	120 mm	4,8 mm	15 kg	30 Ø	Steel	DX51	VT
Meat hook	85004	10 per box	140 mm	5,2 mm	20 kg	36 Ø	Steel	DX51	VT
Meat hook	85005	10 per box	160 mm	5,8 mm	30 kg	38 Ø	Steel	DX51	VT
Meat hook	85011	10 per box	80 mm	3,9 mm	10 kg	20 Ø	RVS 304	W-Nr.: 1.4301
Meat hook	85013	10 per box	120 mm	4,8 mm	15 kg	35 Ø	RVS 304	W-Nr.: 1.4301
Meat hook	85012	10 per box	100 mm	4,4 mm	10 kg	30 Ø	RVS 304	W-Nr.: 1.4301
Meat hook	85014	10 per box	140 mm	5,2 mm	20 kg	40 Ø	RVS 304	W-Nr.: 1.4301
Meat hook	85015	10 per box	160 mm	5,8 mm	30 kg	47 Ø	RVS 304	W-Nr.: 1.4301
