Screw eye with wire strainer

Threaded eye bolt for creating powerful attachment points. Designed to be used with plugs featuring internal threading for secure fastening. Available in various sizes in galvanized or stainless steel.

Length 1

Length 2

Diameter

Material

RVS 304

Steel

Surface treatment

304

Details & dimensions

Article

Article number80015001

EAN code8714318011260

Packaging

EAN code8714318109882

Packaging100 per box

Length65 mm

Width45 mm

Height35 mm

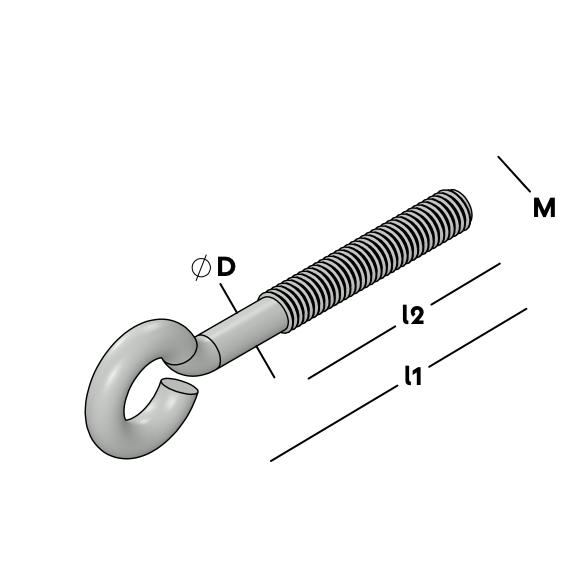

Dimensions

Screw eye with wire strainer

Length 110 mm

Length 28 mm

Diameter2,65 mm

Maximum pulling force7,5 kg

Metric thread3 M

Size eye6 Ø

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length 1	Length 2	Diameter	Maximum pulling force	Metric thread	Size eye	Material	Steel Quality
Screw eye with wire strainer	80015001	100 per box	10 mm	8 mm	2,65 mm	7,5 kg	3 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015004	100 per box	16 mm	15 mm	2,6 mm	7,5 kg	3 M	5 Ø	Steel	DX51
Screw eye with wire strainer	80015007	100 per box	20 mm	18 mm	2,65 mm	7,5 kg	3 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015010	100 per box	11 mm	10 mm	3,5 mm	12,5 kg	4 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015013	100 per box	15 mm	13 mm	3,45 mm	12,5 kg	4 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015016	100 per box	20 mm	18 mm	3,45 mm	12,5 kg	4 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015019	100 per box	25 mm	23 mm	3,45 mm	12,5 kg	4 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015022	100 per box	30 mm	27 mm	3,45 mm	12,5 kg	4 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015028	100 per box	15 mm	13 mm	4,4 mm	20 kg	5 M	8 Ø	Steel	DX51
Screw eye with wire strainer	80015031	100 per box	20 mm	18 mm	4,4 mm	20 kg	5 M	8 Ø	Steel	DX51
Screw eye with wire strainer	80015025	100 per box	40 mm	37 mm	3,45 mm	12,5 kg	4 M	6 Ø	Steel	DX51
Screw eye with wire strainer	80015034	100 per box	25 mm	23 mm	4,4 mm	20 kg	5 M	8 Ø	Steel	DX51
Screw eye with wire strainer	80015037	100 per box	30 mm	27 mm	4,4 mm	20 kg	5 M	8 Ø	Steel	DX51
Screw eye with wire strainer	80015040	100 per box	40 mm	37 mm	4,4 mm	20 kg	5 M	8 Ø	Steel	DX51
Screw eye with wire strainer	80015043	100 per box	50 mm	47 mm	4,4 mm	20 kg	5 M	8 Ø	Steel	DX51
Screw eye with wire strainer	80015046	100 per box	15 mm	15 mm	5,2 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015052	100 per box	23 mm	23 mm	5,25 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015049	100 per box	20 mm	18 mm	5,25 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015055	100 per box	30 mm	27 mm	5,25 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015058	100 per box	40 mm	37 mm	5,25 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015061	100 per box	50 mm	47 mm	5,25 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015064	100 per box	60 mm	57 mm	5,25 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015067	100 per box	80 mm	77 mm	5,25 mm	35 kg	6 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015070	100 per box	20 mm	18 mm	7,05 mm	50 kg	8 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015073	100 per box	26 mm	25 mm	7,05 mm	50 kg	8 M	12 Ø	Steel	DX51
Screw eye with wire strainer	80015079	100 per box	40 mm	37 mm	7,05 mm	50 kg	8 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015076	100 per box	30 mm	27 mm	7,05 mm	50 kg	8 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015082	100 per box	50 mm	47 mm	7,05 mm	50 kg	8 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015085	100 per box	60 mm	57 mm	7,05 mm	50 kg	8 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015088	50 per box	80 mm	77 mm	7,05 mm	50 kg	8 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015091	50 per box	100 mm	88 mm	7,05 mm	50 kg	8 M	10 Ø	Steel	DX51
Screw eye with wire strainer	80015094	50 per box	152 mm	150 mm	7,05 mm	50 kg	8 M	12 Ø	Steel	DX51
Screw eye with wire strainer	80015097	50 per box	32 mm	30 mm	8,85 mm	100 kg	10 M	14 Ø	Steel	DX51
Screw eye with wire strainer	80015100	50 per box	40 mm	37 mm	8,85 mm	100 kg	10 M	15 Ø	Steel	DX51
Screw eye with wire strainer	80015103	50 per box	50 mm	47 mm	8,85 mm	100 kg	10 M	15 Ø	Steel	DX51
Screw eye with wire strainer	80015106	50 per box	60 mm	57 mm	8,85 mm	100 kg	10 M	15 Ø	Steel	DX51
Screw eye with wire strainer	80015109	50 per box	80 mm	77 mm	8,85 mm	100 kg	10 M	15 Ø	Steel	DX51
Screw eye with wire strainer	80015112	50 per box	100 mm	88 mm	8,85 mm	100 kg	10 M	15 Ø	Steel	DX51
Screw eye with wire strainer	80015115	50 per box	70 mm	65 mm	10,7 mm	175 kg	12 M	22 Ø	Steel	DX51
Screw eye with wire strainer	80015118	25 per box	102 mm	100 mm	10,6 mm	175 kg	12 M	18 Ø	Steel	DX51
Screw eye with wire strainer	80015133	100 per box	40 mm	37 mm	3,5 mm	12,5 kg	4 M	6 Ø	RVS 304	-
Screw eye with wire strainer	80015136	100 per box	30 mm	27 mm	4,4 mm	20 kg	5 M	8 Ø	RVS 304	-
Screw eye with wire strainer	80015139	100 per box	50 mm	47 mm	4,4 mm	20 kg	5 M	8 Ø	RVS 304	-
Screw eye with wire strainer	80015142	100 per box	20 mm	18 mm	5,25 mm	35 kg	6 M	10 Ø	RVS 304	-
Screw eye with wire strainer	80015145	100 per box	30 mm	27 mm	5,25 mm	35 kg	6 M	10 Ø	RVS 304	-
Screw eye with wire strainer	80015148	100 per box	40 mm	37 mm	5,25 mm	35 kg	6 M	10 Ø	RVS 304	-
Screw eye with wire strainer	80015151	100 per box	50 mm	47 mm	5,25 mm	35 kg	6 M	10 Ø	RVS 304	-
Screw eye with wire strainer	80015152	100 per box	60 mm	57 mm	5,25 mm	35 kg	6 M	10 Ø	RVS 304	-
Screw eye with wire strainer	80015154	100 per box	32 mm	30 mm	7 mm	50 kg	8 M	12 Ø	RVS 304	-
Screw eye with wire strainer	80015157	100 per box	50 mm	47 mm	7,05 mm	50 kg	8 M	10 Ø	RVS 304	-
Screw eye with wire strainer	80015159	100 per box	60 mm	57 mm	7,05 mm	50 kg	8 M	10 Ø	RVS 304	-
Screw eye with wire strainer	80015160	50 per box	80 mm	77 mm	7,05 mm	50 kg	8 M	10 Ø	RVS 304	-
