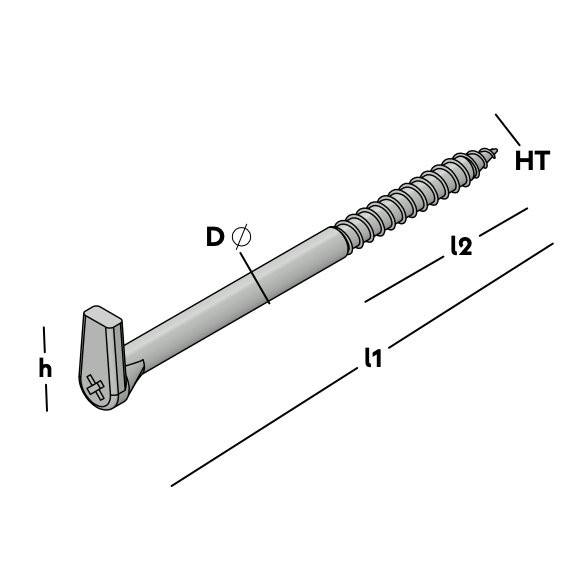

Square hook with cross

Self-tapping square hook with Philips head for screwdrivers, ideal for wall attachment points. Available in various sizes.

Length 1

Length 2

Height

10 mm

16 mm

18 mm

Diameter

5,25 mm

6 mm

Details & dimensions

Article number80020196

EAN code8714318012243

EAN code8714318110864

Packaging100 per box

Length150 mm

Width80 mm

Height60 mm

Length 180 mm

Length 240 mm

Height18 mm

Diameter6 mm

Wood Wire5,8 Ht

MaterialSteel

Steel QualityDX51

Surface treatment

Name	Article number	Packaging	Length 1	Length 2	Height	Diameter	Wood Wire	Material	Steel Quality
Square hook with cross	80020199	100 per box	100 mm	40 mm	10 mm	6 mm	5,8 Ht	Steel	DX51
Square hook with cross	80020196	100 per box	80 mm	40 mm	18 mm	6 mm	5,8 Ht	Steel	DX51
Square hook with cross	80020193	100 per box	65 mm	30 mm	18 mm	6 mm	6 Ht	Steel	DX51
Square hook with cross	80020190	100 per box	50 mm	25 mm	16 mm	5,25 mm	5,5 Ht	Steel	DX51
Square hook with cross	80020187	100 per box	40 mm	20 mm	16 mm	5,25 mm	5,5 Ht	Steel	DX51
