Bearing plate

Length

Width

Thickness

Receivers for

Steel Quality

DX51

S235

S350

Surface treatment

Details & dimensions

Article

Article number84436

EAN code8714318002176

Packaging

EAN code8714318102036

Packaging100 per box

Length310 mm

Width140 mm

Height130 mm

Dimensions

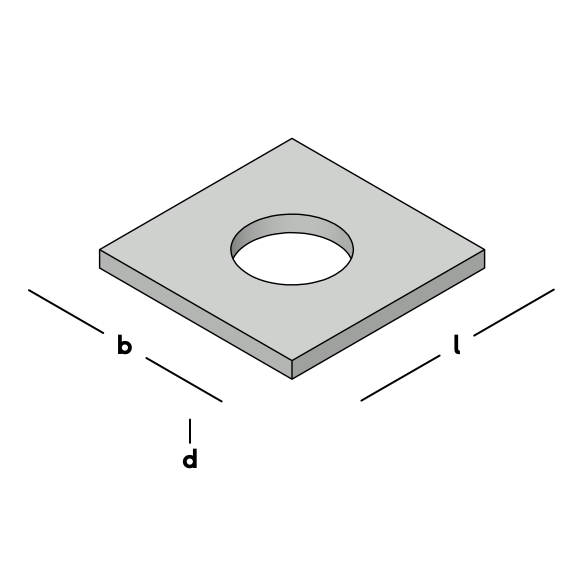

Bearing plate

Length (l)60 mm

Width (b)60 mm

Thickness (d)5 mm

Receivers forwire M24

Hole pattern1/27

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Receivers for	Hole pattern	Material	Steel Quality
Bearing plate	84056	1 piece	100 mm	40 mm	8 mm	wire M16	1/17	Steel	S235
Bearing plate	84074	1 piece	150 mm	100 mm	10 mm	wire M16	1/17	Steel	S235
Bearing plate	84084	1 per pallet	150 mm	150 mm	10 mm	wire M16	1/17	Steel	S235
Bearing plate	84085	1 piece	150 mm	150 mm	10 mm	-	1/22	Steel	S235
Bearing plate	84402	250 per box	30 mm	30 mm	2 mm	wire M10	1/10	Steel	DX51
Bearing plate	84412	200 per box	40 mm	40 mm	3 mm	wire M10	1/12	Steel	S350
Bearing plate	84413	200 per box	40 mm	40 mm	3 mm	wire M12	1/14	Steel	S350
Bearing plate	84414	200 per box	40 mm	40 mm	3 mm	wire M16	1/17	Steel	S350
Bearing plate	84422	100 per box	50 mm	50 mm	4 mm	wire M10	1/12	Steel	S350
Bearing plate	84423	100 per box	50 mm	50 mm	4 mm	wire M12	1/14	Steel	S350
Bearing plate	84424	100 per box	50 mm	50 mm	4 mm	wire M16	1/17	Steel	S350
Bearing plate	84425	100 per box	50 mm	50 mm	4 mm	wire M20	1/22	Steel	S350
Bearing plate	84433	100 per box	60 mm	60 mm	5 mm	wire M12	1/14	Steel	S235
Bearing plate	84434	100 per box	60 mm	60 mm	5 mm	wire M16	1/17	Steel	S235
Bearing plate	84435	100 per box	60 mm	60 mm	5 mm	wire M20	1/22	Steel	S235
Bearing plate	84436	100 per box	60 mm	60 mm	5 mm	wire M24	1/27	Steel	S235
Bearing plate	84437	100 per box	60 mm	60 mm	5 mm	wire M12	1/14	Steel	S235
Bearing plate	84438	100 per box	60 mm	60 mm	5 mm	wire M16	1/17	Steel	S235
Bearing plate	84439	100 per box	60 mm	60 mm	5 mm	wire M20	1/22	Steel	S235
Bearing plate	84440	100 per box	60 mm	60 mm	5 mm	wire M24	1/27	Steel	S235
Bearing plate	84453	25 per box	100 mm	100 mm	6 mm	wire M12	1/14	Steel	S235
Bearing plate	84454	25 per box	100 mm	100 mm	6 mm	wire M16	1/17	Steel	S235
Bearing plate	84456	25 per box	100 mm	100 mm	6 mm	wire M24	1/27	Steel	S235
Bearing plate	84455	25 per box	100 mm	100 mm	6 mm	wire M20	1/22	Steel	S235
