Handrail poured conctrete structure

Scaffold pipe support for temporary edge protection in combination with matching pipe supports. Suitable for screwing to the wall.

Length

150 mm

165 mm

256 mm

Slotted hole

2/7x4 mm

40x10 mm

Details & dimensions

Article number10070

EAN code8714318016562

EAN code8714318115418

Packaging100 per box

Length220 mm

Width220 mm

Height110 mm

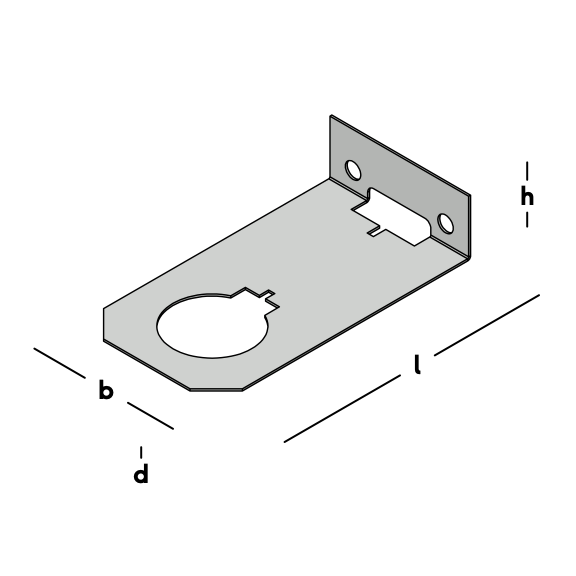

Length (l)165 mm

Width (b)90 mm

Thickness (d)1,25 mm

Height (h)36 mm

Slotted hole40x10 mm

Hole pattern2/10-1/51

For scaffolding pipeØ48 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Height	Slotted hole	Receivers for	Hole pattern	For scaffolding pipe	Type	Material	Steel Quality
Handrail tie type A	10040	100 per box	256 mm	90 mm	1,25 mm	-	2/7x4 mm	-	2/5-8/10-1/50	Ø48 mm	-	Steel	DX51
Handrail tie type LS	10061	100 per box	150 mm	90 mm	1,25 mm	-	2/7x4 mm	layher-system (for pinion Ø16)	2/5-8/10-1/20	-	LS	Steel	DX51
Handrail poured conctrete structure	10070	100 per box	165 mm	90 mm	1,25 mm	36 mm	40x10 mm	-	2/10-1/51	Ø48 mm	-	Steel	DX51
