Nail gusset

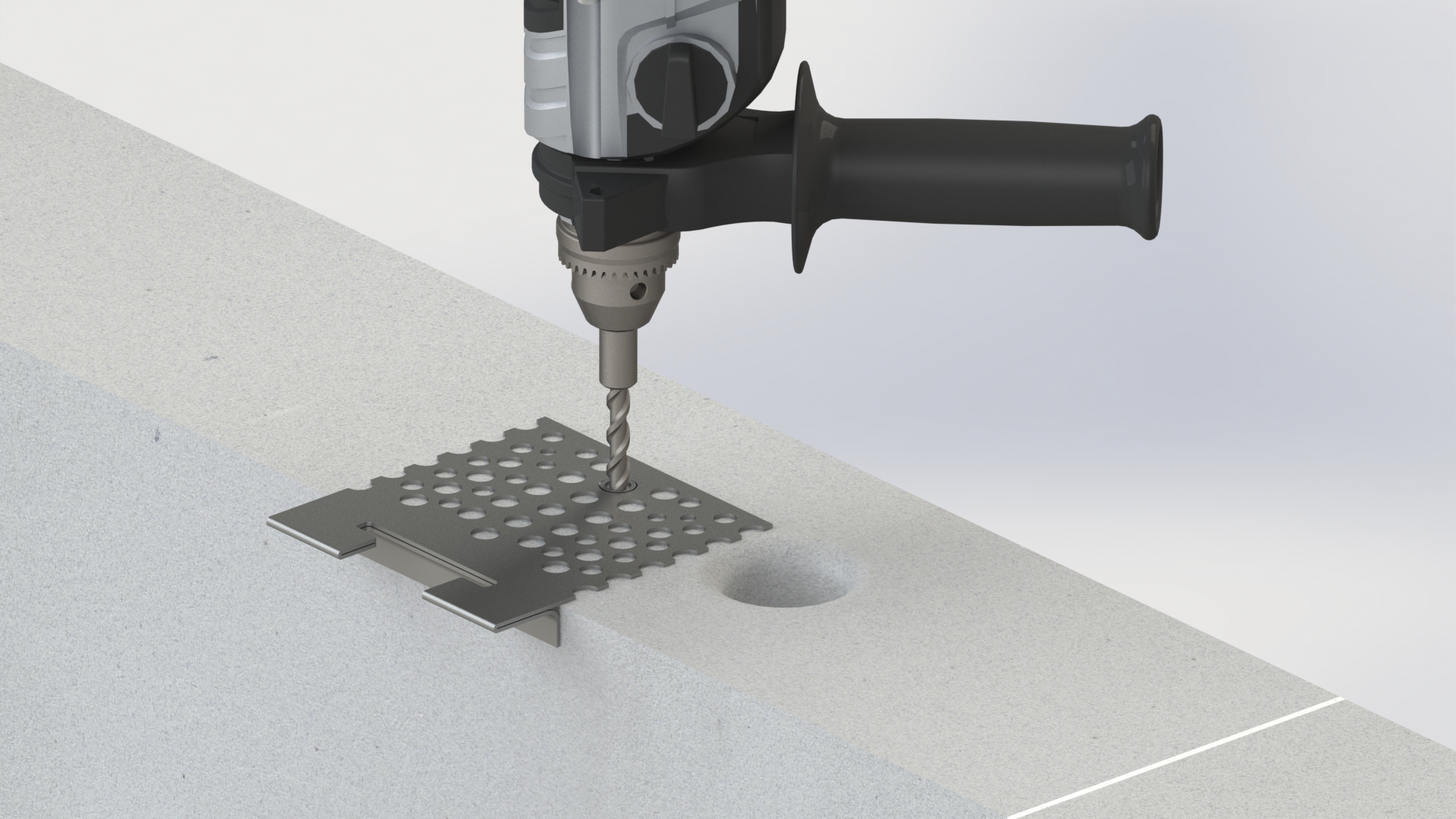

Mounting plate for Aboma-certified mounting of an RB-Beugel with a nailed tension sleeve on the head of the sand-lime brick wall. Not suitable for use with hollow-core slab floors.
Length
Width
Thickness
Steel Quality
Details & dimensions
Article
Article number10120
EAN code8714318017941
Packaging
EAN code8714318116149
Packaging50 per box
Length330 mm
Width230 mm
Height130 mm
Dimensions
Nail gusset
Length (l)126 mm
Width (b)117 mm
Thickness (d)1,5 mm
Slotted hole67x6,5 mm
Hole pattern2/5,5-2/6,5-18/8-3/9-20/10
Attachmentsincluding GB cover nail 8x70
MaterialSteel
Steel QualityDX51
Surface treatment
Downloads
Certifications, quality marks and technical sheets
Processing & accessories
You can use the products below to place or confirm the product correctly.
