Safety device
Bracket for quick and easy installation of kicking boards on concrete work floors and scaffolding. The scaffolding board can be screwed to the bracket using the mounting holes. Suitable for scaffolding boards with a thickness of 32 mm.
Details & dimensions
Article
Article number10075
EAN code8714318025281
Packaging
EAN code8714318025298
Packaging20 per box
Length220 mm
Width180 mm
Height80 mm

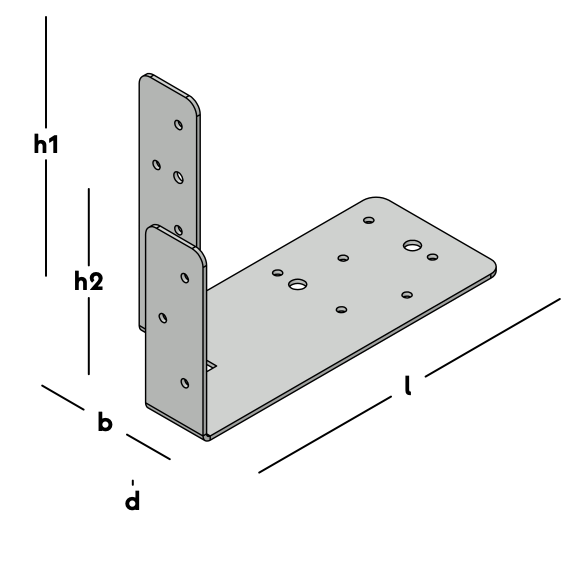

Dimensions
Safety device
Length (l)165 mm
Width (b)70 mm
Thickness (d)2 mm
Height 1 (h1)125 mm
Height 2 (h2)90 mm
Hole pattern12/4-1/5-2/7
MaterialSteel
Steel QualityDX51
Surface treatment
