Metal formwork for concrete

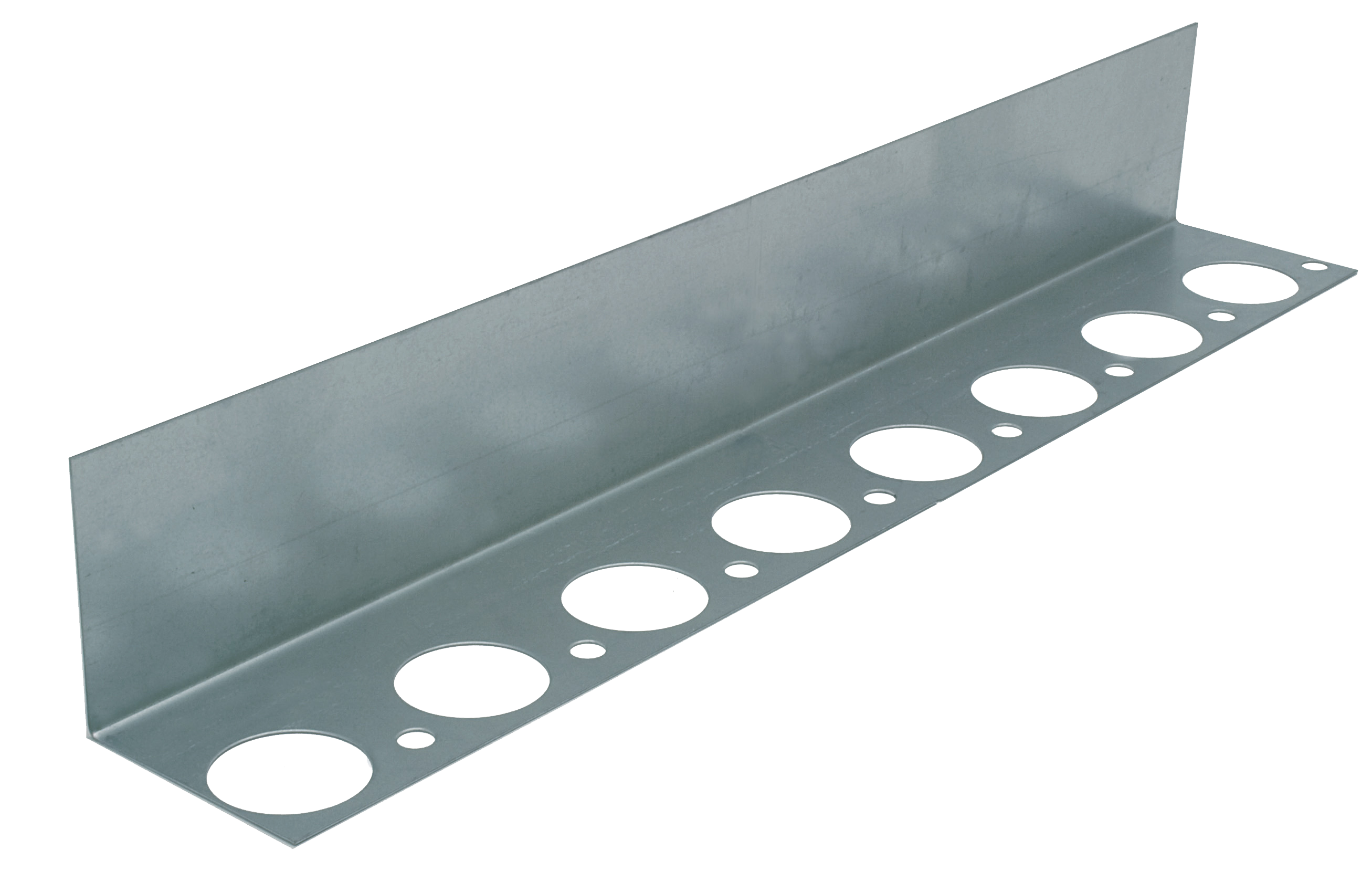

Corner strip for sand-cement screeds. Easy to use as shuttering for directly applying the sand-cement screed to the raw concrete floor at the height of, for example, wall openings.The bottom flange is easily attached to the raw concrete floor with steel nails.

Height

Details & dimensions

Article

Article number105090

EAN code8714318068219

Packaging

EAN code8714318068219

Packaging1 piece

Dimensions

Metal formwork for concrete

Length (l)1150 mm

Thickness (d)0,7 mm

Height (h)90 mm

Hole pattern23/7,5-22/32

Flange (f)60 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Name	Article number	Packaging	Lengte	Dikte	Hoogte	Gatenpatroon	Vloerhoogte	Flens	Materiaal	Staalkwaliteit
Hoeklijn t.b.v. zandcementdekvloer	105040	1 piece	1150 mm	0,7 mm	40 mm	23/7,5-22/32	40 mm	80 mm	Staal	DX51
Hoeklijn t.b.v. zandcementdekvloer	105050	1 piece	1150 mm	0,7 mm	50 mm	23/7,5-22/32	50 mm	70 mm	Staal	DX51
Hoeklijn t.b.v. zandcementdekvloer	105060	1 piece	1150 mm	0,7 mm	60 mm	23/7,5-22/32	60 mm	60 mm	Staal	DX51
Hoeklijn t.b.v. zandcementdekvloer	105070	1 piece	1150 mm	0,7 mm	70 mm	23/7,5-22/32	70 mm	80 mm	Staal	DX51
Hoeklijn t.b.v. zandcementdekvloer	105080	1 piece	1150 mm	0,7 mm	80 mm	23/7,5-22/32	80 mm	70 mm	Staal	DX51
Hoeklijn t.b.v. zandcementdekvloer	105090	1 piece	1150 mm	0,7 mm	90 mm	23/7,5-22/32	90 mm	60 mm	Staal	DX51
Hoeklijn t.b.v. zandcementdekvloer	105100	1 piece	1150 mm	0,7 mm	100 mm	23/7,5-22/32	100 mm	50 mm	Staal	DX51
