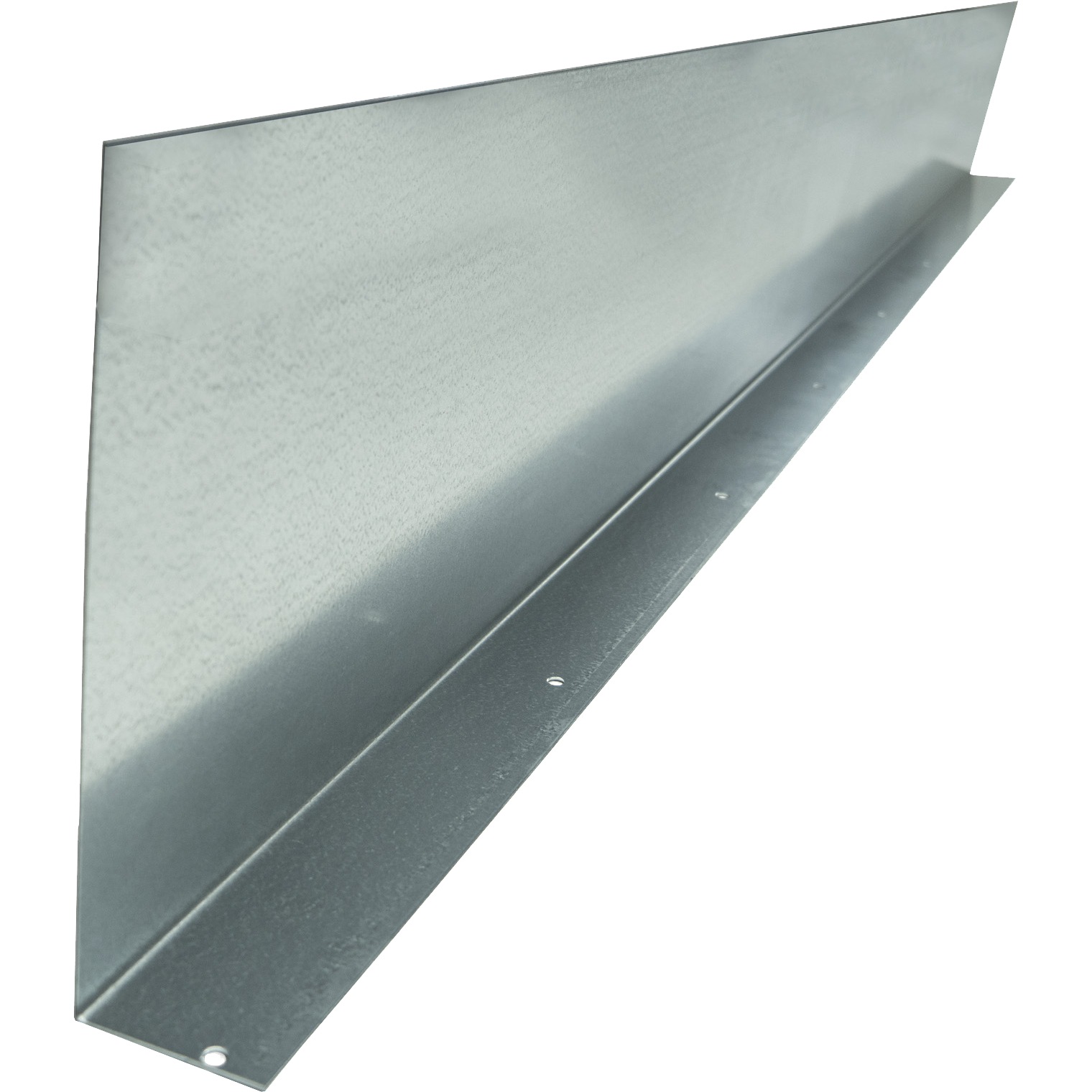

Metal formwork for concrete 84°
Edge box for a poured floor structure. The flange of this edge box is only fixed to the subfloor, bracing is basically not necessary. The edge box is delivered 84° in the hook and automatically bends to a 90-degree angle during pouring on site under the pressure of the concrete.
Thickness
Height
Details & dimensions
Article
Article number107250
EAN code8714318039509
Packaging
EAN code8714318039509
Packaging1 piece
Dimensions
Metal formwork for concrete 84°
Length (l)2000 mm
Thickness (d)1,5 mm
Height (h)250 mm
Hole pattern8/7
Degrees ° angle-put84 °
Flange (f)70 mm
MaterialSteel
Steel QualityDX51
Surface treatment
