Rim shuttering anchor

Mounting bracket for installing wooden scaffolding boards with a thickness of 32 mm as traditional edge formwork. Flat model for floor thickness 200 mm.

Thickness

1,4 mm

2 mm

Height

Details & dimensions

Article

Article number101300

EAN code8714318015152

Packaging

EAN code8714318113940

Packaging100 per box

Length330 mm

Width230 mm

Height170 mm

Dimensions

Rim shuttering anchor

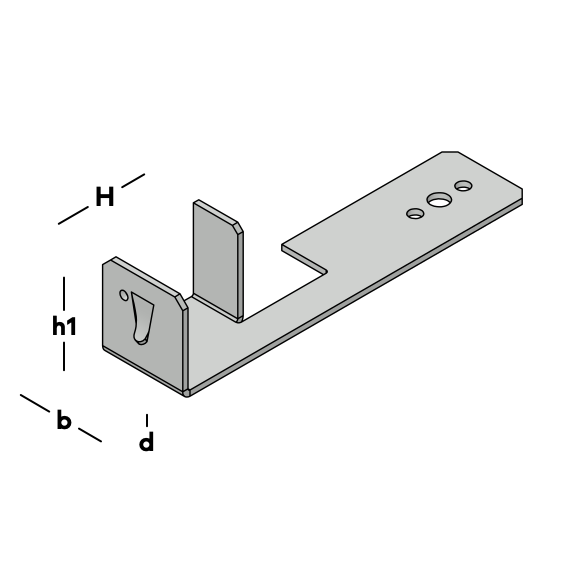

Width (b)30 mm

Thickness (d)2 mm

Height (h)32 mm

Hole pattern5/3-2/4,5-1/6,5

Between Size32 mm

Typeflat

MaterialSteel

Steel QualityDX51

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Width	Thickness	Height	Slotted hole	Hole pattern	Lip size	Wood Size width	Between Size	Type	Material	Steel Quality
Rim formwork tie universal	100300	25 per bunch	400 mm	30 mm	1,4 mm	150 mm	5/35x4 mm	3/5-66/7	-	-	-	-	Steel	DX51
Rim formwork tie	100312	100 per box	-	30 mm	2 mm	12 mm	-	7/3-2/4,5-1/6,5	20 mm	32 mm	32 mm	12	Steel	DX51
Rim formwork tie	100322	100 per box	-	30 mm	2 mm	22 mm	-	7/3-2/4,5-1/6,5	20 mm	32 mm	32 mm	22	Steel	DX51
Rim formwork tie	100332	100 per box	-	30 mm	2 mm	32 mm	-	5/3-2/4,5-1/6,5	20 mm	32 mm	32 mm	32	Steel	DX51
Rim shuttering anchor	101300	100 per box	-	30 mm	2 mm	32 mm	-	5/3-2/4,5-1/6,5	-	-	32 mm	flat	Steel	DX51
