Kimanker
Kimanker

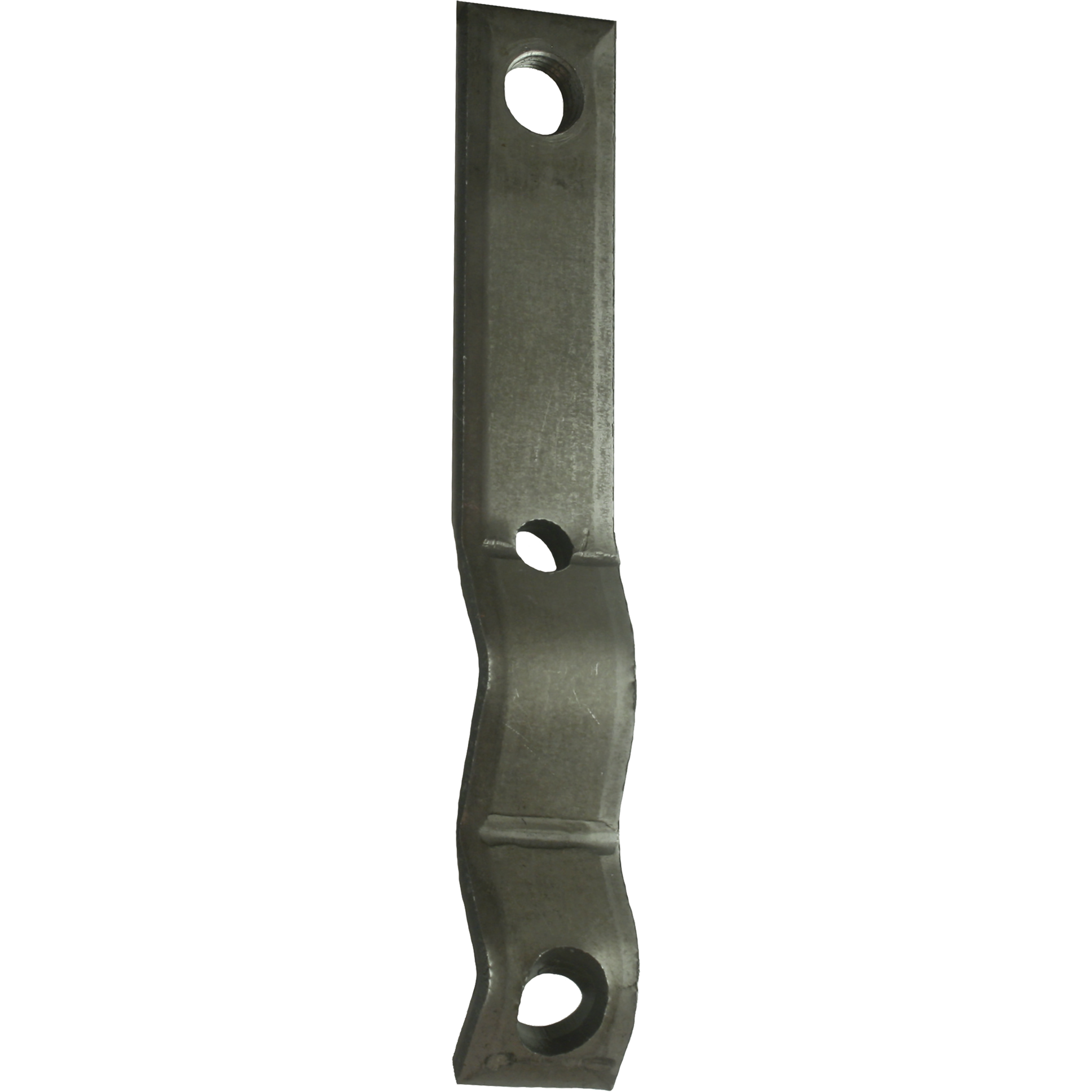

Kickerless fixing

Spacer for setting wall formwork. This eliminates the need to make an upstand. During pouring, the (corrugated part of the) bilge anchor is inserted into the fresh concrete. A short thread end is used for the correct wall thickness.

Length
200 mm
300 mm
400 mm

Details & dimensions

Article

Article number08018
EAN code8714318002220

Packaging

EAN code8714318039981
Packaging3000 per pallet
Length1140 mm
Width740 mm
Height710 mm

Dimensions

Kickerless fixing

Length (l)200 mm
Width (b)30 mm
Thickness (d)8 mm
Hole pattern1/10-1/14-1/M16
MaterialSteel
Steel QualityS235
Surface treatmentBL

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.
