Concrete angle bracket

Mounting angle suitable for perpendicular connection of concrete elements.

Details & dimensions

Article number0756440

EAN code8714318045210

EAN code8714318045210

Packaging1 piece

Length360 mm

Width565 mm

Height80 mm

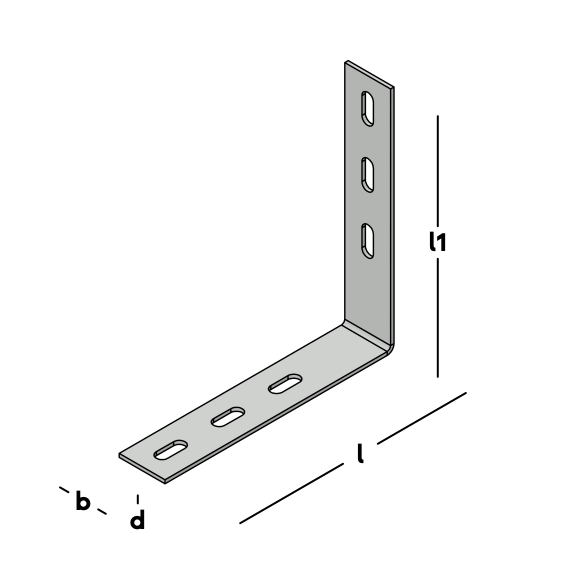

Length 1 (l1)400 mm

Length 2 (l2)400 mm

Width (b)80 mm

Thickness (d)6 mm

Hole pattern6/50x20

MaterialSteel

Steel QualityS235

Surface treatment

Drawings and models in 2D and 3D

1 / 6

View our assembly instructions here that help you step by step to an end result.

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length 1	Length 2	Width	Thickness	Hole pattern	Material	Steel Quality	Surface treatment
Concrete angle bracket	0756440	1 piece	400 mm	400 mm	80 mm	6 mm	6/50x20	Steel	S235
Concrete angle bracket articulated	0756441	1 piece	400 mm	400 mm	80 mm	6 mm	6/50x20	Steel	S235
