Sill Iron

Corner bar used at floor edges at (garage) door openings. The sill iron is fitted with embedded anchors.

Length

930 mm

1030 mm

3000 mm

Details & dimensions

Article number66631

EAN code8714318009335

EAN code8714318108168

Packaging5 per bunch

Length1070 mm

Width160 mm

Height130 mm

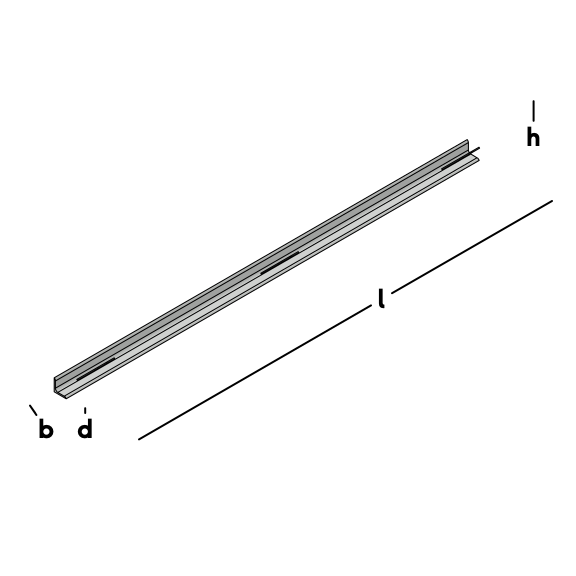

Length (l)1030 mm

Width (b)30 mm

Thickness (d)3 mm

Height (h)30 mm

MaterialSteel

Steel QualityDX51

Surface treatment

Drawings and models in 2D and 3D

Name	Article number	Packaging	Length	Width	Thickness	Height	Material	Steel Quality
Sill Iron	66630	5 per bunch	930 mm	30 mm	3 mm	30 mm	Steel	DX51
Sill Iron	66631	5 per bunch	1030 mm	30 mm	3 mm	30 mm	Steel	DX51
Sill Iron	66650	1 piece	3000 mm	30 mm	3 mm	30 mm	Steel	DX51
