Wandanker star
Wandanker star

Rigid wall clamp

Mounting angle for connecting perpendicularly bonded sand-lime brick walls. This wall anchor is also used for connections of predetermined wooden interior (door) frames.

Material
RVS 316
Steel
Steel Quality
DX51
W-Nr.:1.4404
Surface treatment
316 O.G.
SV

Details & dimensions

Article

Article number212260
EAN code8714318042912

Packaging

EAN code8714318108540
Packaging100 per box
Length330 mm
Width230 mm
Height130 mm

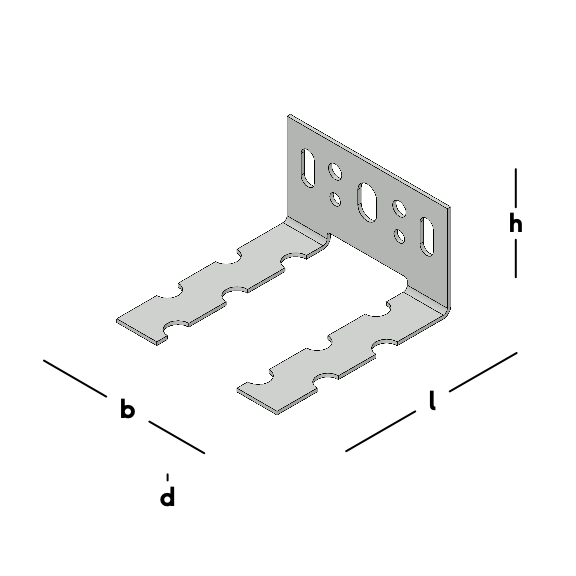

Dimensions

Rigid wall clamp

Length (l)65 mm
Width (b)60 mm
Thickness (d)1,25 mm
Height (h)35 mm
Slotted hole2/12x5-12x7 mm
Hole pattern2/4-2/5
MaterialSteel
Steel QualityDX51
Surface treatmentSV

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Processing & accessories

You can use the products below to place or confirm the product correctly.
