Wall junction strip

Perforated flat strip for joining bonded sand-lime brick units and blocks. Adhesive bonding strips are incorporated into the ribbon joint during bonding at the location of a bonding joint to stabilise the wall.

Length

200 mm

300 mm

400 mm

Thickness

0,6 mm

0,7 mm

Material

RVS 316

Steel

Steel Quality

DX51

W-Nr.: 1.4401-1.4362

Details & dimensions

Article

Article number212186

EAN code8714318057565

Packaging

EAN code8714318057572

Packaging250 per box

Length430 mm

Width140 mm

Height63 mm

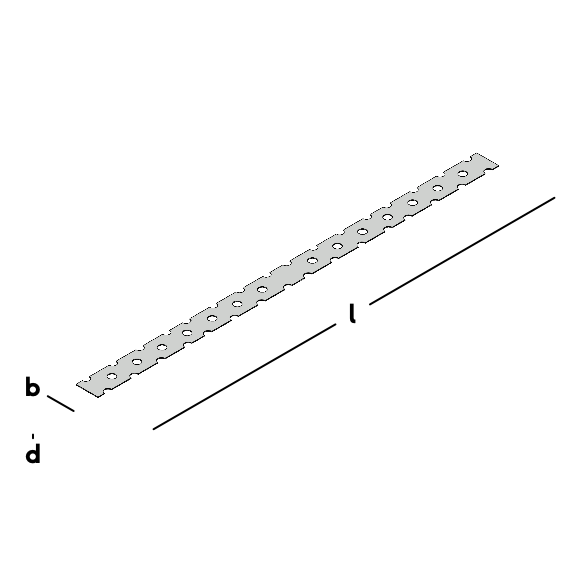

Dimensions

Wall junction strip

Length (l)400 mm

Width (b)22 mm

Thickness (d)0,6 mm

Hole pattern14/7

MaterialRVS 316

Steel QualityW-Nr.: 1.4401-1.4362

Downloads

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

Technical Sheet

Name	Article number	Packaging	Length	Width	Thickness	Hole pattern	Material	Steel Quality	Surface treatment
Wall junction strip	21210	250 per box	200 mm	22 mm	0,7 mm	7/7	Steel	DX51
Wall junction strip	212126	250 per box	200 mm	22 mm	0,6 mm	7/7	RVS 316	W-Nr.: 1.4401-1.4362	-
Wall junction strip	21213	250 per box	300 mm	22 mm	0,7 mm	11/7	Steel	DX51
Wall junction strip	212156	250 per box	300 mm	22 mm	0,6 mm	11/7	RVS 316	W-Nr.: 1.4401-1.4362	-
Wall junction strip	21216	250 per box	400 mm	22 mm	0,7 mm	14/7	Steel	DX51
Wall junction strip	212186	250 per box	400 mm	22 mm	0,6 mm	14/7	RVS 316	W-Nr.: 1.4401-1.4362	-
