Wall frame anchor

The anchor serves to secure the wall panel (a wooden beam placed on the wall or against/on the floor) to the load-bearing wall, so that the forces acting on the roof are transferred to the main structure.

Length

Surface treatment

Details & dimensions

Article

Article number05153

EAN code8714318001643

Packaging

EAN code8714318101558

Packaging25 per box

Length340 mm

Width260 mm

Height85 mm

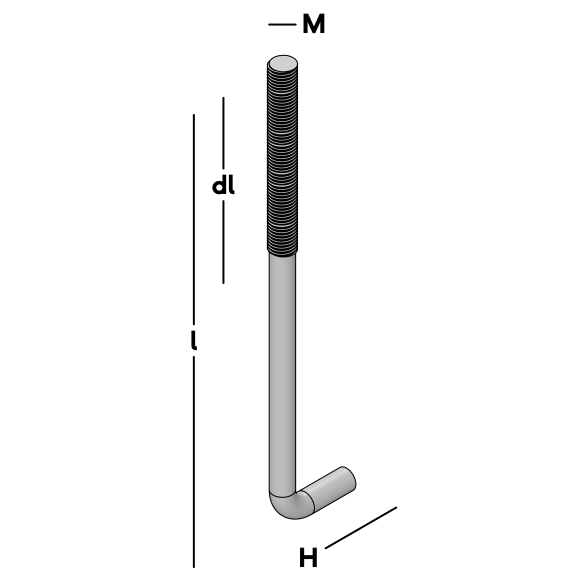

Dimensions

Wall frame anchor

Length (l)300 mm

Wire Length (dl)120 mm

Metric thread (M)16 M

Hook55 mm

MaterialSteel

Steel QualityS235

Surface treatment

Downloads

Drawings and models in 2D and 3D

Processing & accessories

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Wire Length	Metric thread	Hook	Material	Steel Quality
Wall frame anchor	05153	25 per box	300 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05155	25 per box	400 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05157	25 per box	500 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05160	25 per bunch	600 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05180	25 per box	400 mm	120 mm	20 M	60 mm	Steel	S235
Wall frame anchor	05182	25 per box	500 mm	120 mm	20 M	60 mm	Steel	S235
Wall frame anchor	05184	20 per bunch	600 mm	120 mm	20 M	60 mm	Steel	S235
Wall frame anchor	05195	15 per box	400 mm	120 mm	24 M	100 mm	Steel	S235
Wall frame anchor	05196	15 per box	500 mm	120 mm	24 M	100 mm	Steel	S235
Wall frame anchor	05197	5 per bunch	600 mm	120 mm	24 M	100 mm	Steel	S235
Wall frame anchor	05201	100 per box	200 mm	120 mm	10 M	50 mm	Steel	S235
Wall frame anchor	05202	100 per box	250 mm	120 mm	10 M	50 mm	Steel	S235
Wall frame anchor	05203	100 per box	300 mm	120 mm	10 M	50 mm	Steel	S235
Wall frame anchor	05205	100 per box	400 mm	120 mm	10 M	50 mm	Steel	S235
Wall frame anchor	05226	100 per box	200 mm	120 mm	12 M	50 mm	Steel	S235
Wall frame anchor	05227	100 per box	250 mm	120 mm	12 M	50 mm	Steel	S235
Wall frame anchor	05228	50 per box	300 mm	120 mm	12 M	50 mm	Steel	S235
Wall frame anchor	05230	50 per box	400 mm	120 mm	12 M	50 mm	Steel	S235
Wall frame anchor	05232	50 per box	500 mm	120 mm	12 M	50 mm	Steel	S235
Wall frame anchor	05352	25 per box	250 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05353	25 per box	300 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05354	25 per box	350 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05355	25 per box	400 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05357	25 per box	500 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05360	25 per box	600 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05358	500 per pallet	450 mm	120 mm	16 M	55 mm	Steel	S235
Wall frame anchor	05380	25 per box	400 mm	120 mm	20 M	60 mm	Steel	S235
Wall frame anchor	05380	500 per pallet	400 mm	120 mm	20 M	60 mm	Steel	S235
Wall frame anchor	05382	25 per bag	500 mm	120 mm	20 M	60 mm	Steel	S235
Wall frame anchor	05383	500 per pallet	500 mm	120 mm	20 M	100 mm	Steel	S235
Wall frame anchor	05384	20 per bunch	600 mm	120 mm	20 M	60 mm	Steel	S235
Wall frame anchor	05395	15 per box	400 mm	120 mm	24 M	100 mm	Steel	S235
Wall frame anchor	05396	15 per bag	500 mm	120 mm	24 M	100 mm	Steel	S235
Wall frame anchor	05397	5 per bag	600 mm	120 mm	24 M	100 mm	Steel	S235
Wall frame anchor	05234	25 per box	600 mm	120 mm	12 M	50 mm	Steel	S235
Wall frame anchor	05238	25 per box	800 mm	120 mm	12 M	50 mm	Steel	S235
