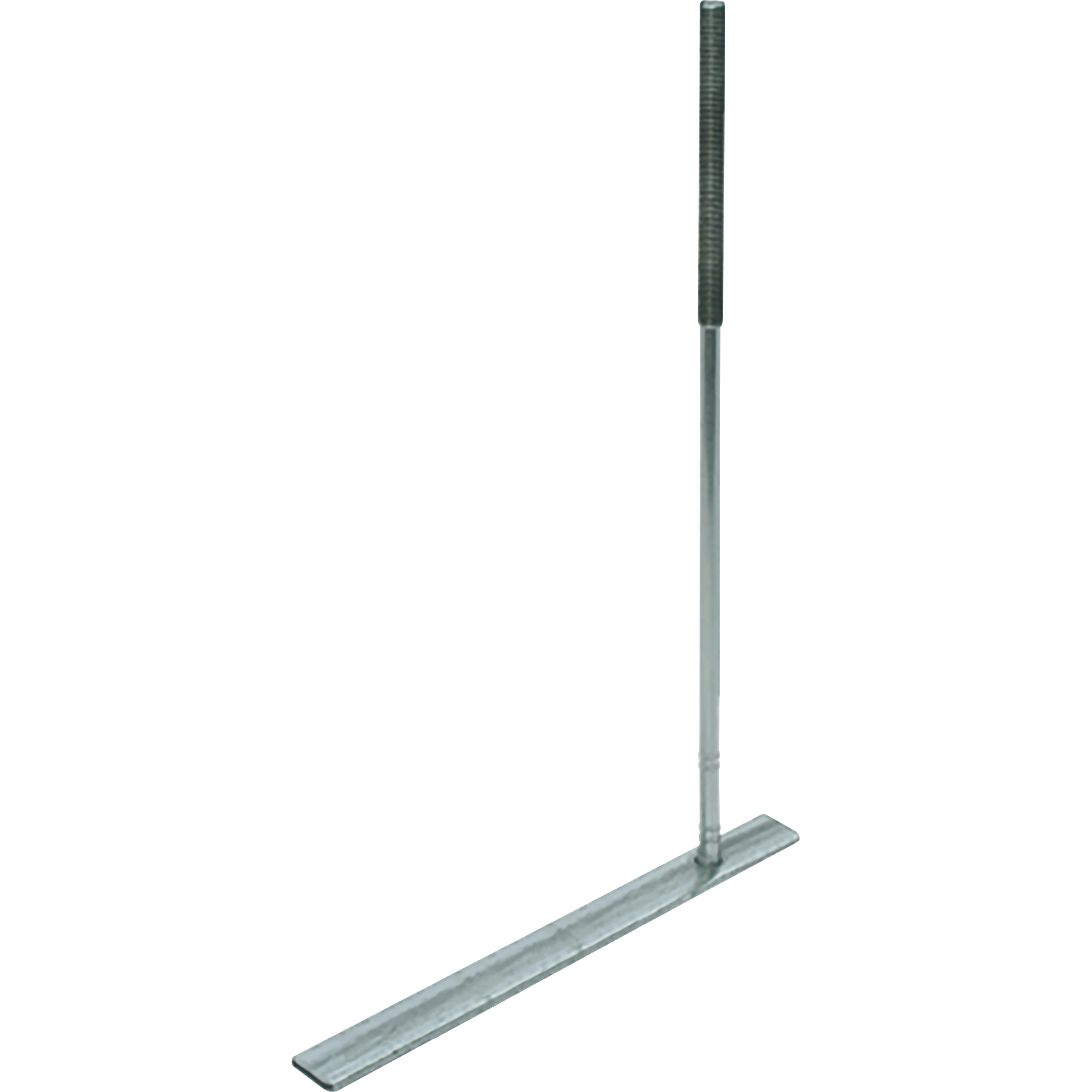

Wall frame tie anchor

Length

Details & dimensions

Article number06674

EAN code8714318066093

EAN code8714318066109

Packaging10 per bunch

Length660 mm

Width310 mm

Height160 mm

Length (l)600 mm

Diameter10,7 mm

Wire Length (dl)120 mm

Metric thread (M)12 M

Plaatbreedte (pb)30 mm

Plate Length (pl)275 mm

Sheet thickness (d)5 mm

Typeexcentrisch

MaterialSteel

Steel QualityS235

Surface treatment

Drawings and models in 2D and 3D

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Diameter	Wire Length	Metric thread	Plaatbreedte	Plate Length	Sheet thickness	Type	Material	Steel Quality
Wall Anchor with Plate eccentric	06570	25 per bag	400 mm	10,7 mm	120 mm	12 M	30 mm	225 mm	5 mm	excentrisch	Steel	S235
Wall Anchor with Plate eccentric	06572	10 per bunch	500 mm	10,7 mm	120 mm	12 M	30 mm	225 mm	5 mm	excentrisch	Steel	S235
Wall Anchor with Plate eccentric	06574	10 per bunch	600 mm	10,7 mm	120 mm	12 M	30 mm	225 mm	5 mm	excentrisch	Steel	S235
Wall Anchor with Plate eccentric	06576	10 per bunch	800 mm	10,7 mm	120 mm	12 M	30 mm	225 mm	5 mm	excentrisch	Steel	S235
Wall Anchor with Plate eccentric	06578	10 per bunch	1000 mm	10,7 mm	120 mm	12 M	30 mm	225 mm	5 mm	excentrisch	Steel	S235
Wall frame tie anchor	06674	10 per bunch	600 mm	10,7 mm	120 mm	12 M	30 mm	275 mm	5 mm	excentrisch	Steel	S235
