UNI-Flexplug

The black insulation plug is for mounting hard and soft cavity insulation in combination with UNI percussion cavity anchors Ø 4 mm in an internal wall of concrete, sand-lime brick or solid brick.

Length

Isolation thickness

Details & dimensions

Article

Article number330180

EAN code8714318054816

Packaging

EAN code8714318054823

Packaging250 per bag

Length700 mm

Width500 mm

Height160 mm

Dimensions

UNI-Flexplug

Length (l)180 mm

Diameter8 mm

Isolation thickness121 t/m 140 mm

ColorBlack

Dish Ø60 mm

MaterialPlastic

Material quality

Downloads

Drawings and models in 2D and 3D

Processing & accessories

1 / 5

View our assembly instructions here that help you step by step to an end result.

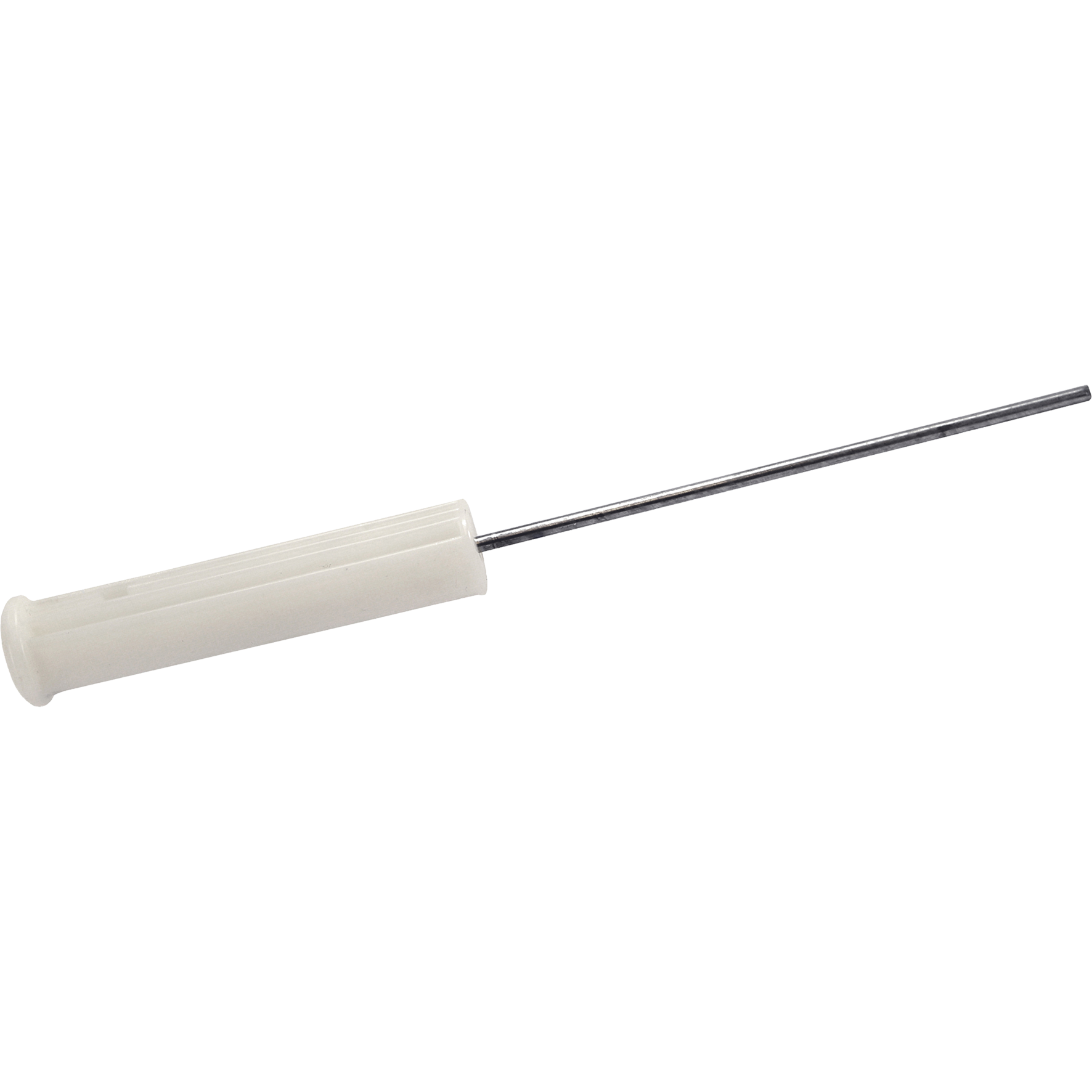

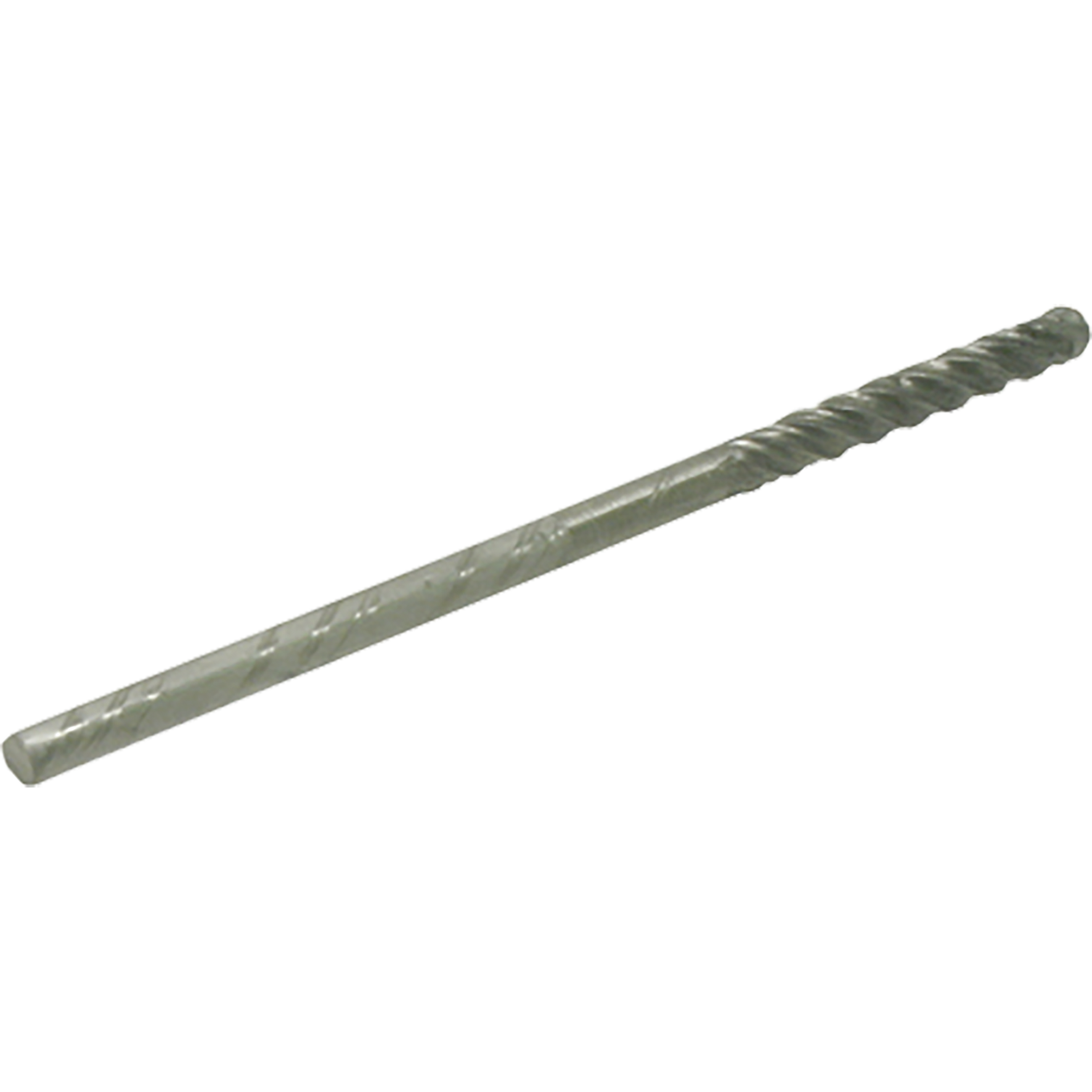

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Lengte	Diameter Ø	Isolatiedikte	Kleur	Schotel Ø	Materiaal
UNI-Flexplug	330060	125 per bag	60 mm	8 mm	0 t/m 20 mm	zwart	60 mm	Kunststof
UNI-flexplug	330080	125 per bag	80 mm	8 mm	21 t/m 40 mm	zwart	60 mm	Kunststof
UNI-flexplug	330100	250 per bag	100 mm	8 mm	41 t/m 60 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330120	250 per bag	120 mm	8 mm	61 t/m 80 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330140	250 per bag	140 mm	8 mm	81 t/m 100 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330160	250 per bag	160 mm	8 mm	101 t/m 120 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330180	250 per bag	180 mm	8 mm	121 t/m 140 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330200	250 per bag	200 mm	8 mm	141 t/m 160 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330220	250 per bag	220 mm	8 mm	161 t/m 180 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330240	250 per bag	240 mm	8 mm	181 t/m 200 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330260	250 per bag	260 mm	8 mm	201 t/m 220 mm	Zwart	60 mm	Kunststof
UNI-flexplug	330280	250 per bag	280 mm	8 mm	221 t/m 240 mm	Zwart	60 mm	Kunststof
