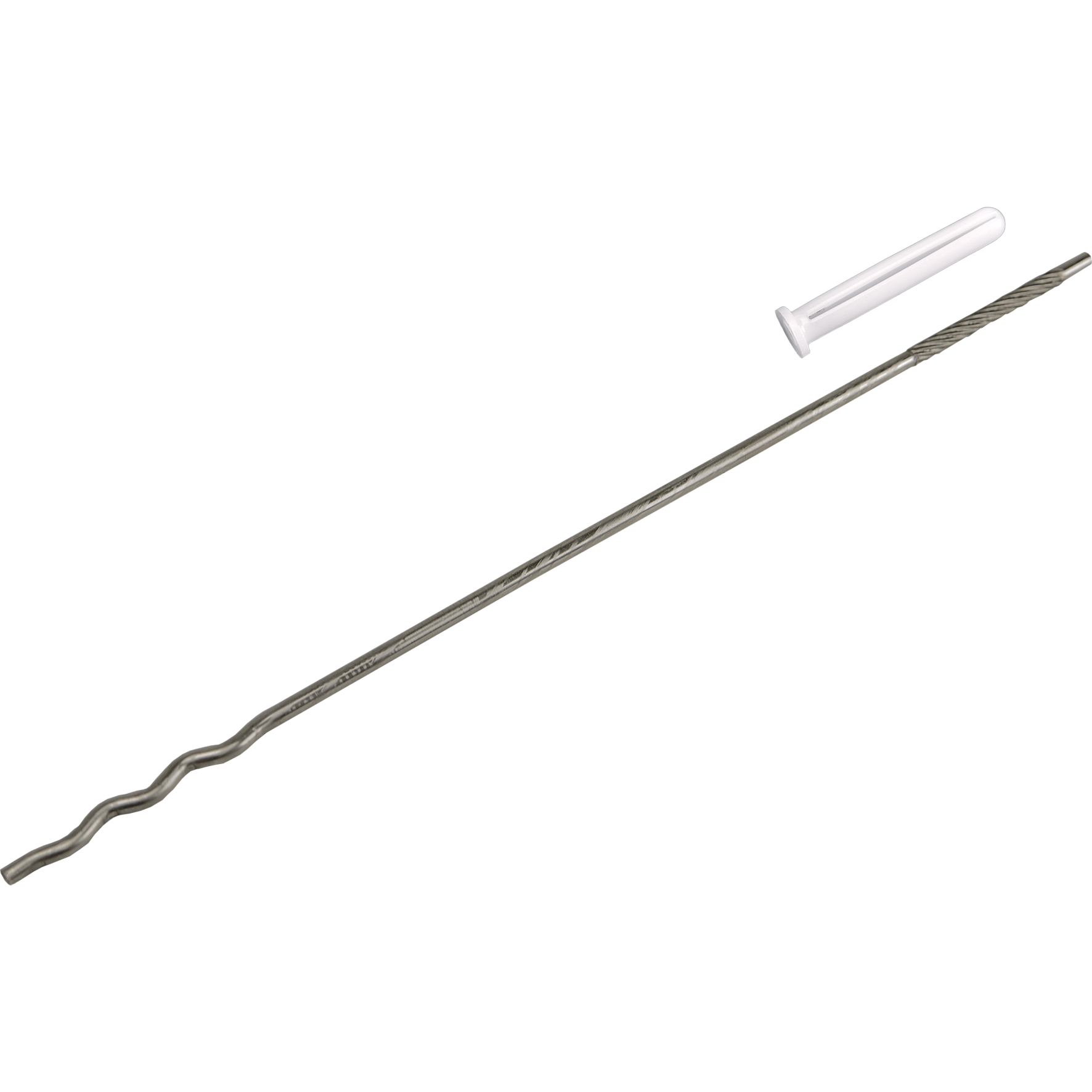

Self tapping wall tie

Length

Cavity Size

Details & dimensions

Article number3799300

EAN code8714318058449

EAN code8714318058456

Packaging250 per box

Length375 mm

Width225 mm

Height135 mm

Length300 mm

Cavity Size150 +/- 15 mm

Environmental classMX 4

MaterialRVS 316

Steel QualityW-Nr.: 1.4401-1.4362

Surface treatment316 O.G.

Drawings and models in 2D and 3D

Certifications, quality marks and technical sheets

You can use the products below to place or confirm the product correctly.

Name	Article number	Packaging	Length	Cavity Size	Environmental class	Material	Steel Quality	Surface treatment
Self tapping wall tie	3799400	250 per box	400 mm	250 +/- 15 mm	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
Self tapping wall tie	3799375	250 per box	375 mm	225 +/- 15 mm	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
Self tapping wall tie	3799350	250 per box	350 mm	200 +/- 15 mm	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
Self tapping wall tie	3799320	250 per box	320 mm	170 +/- 15 mm	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
Self tapping wall tie	3799300	250 per box	300 mm	150 +/- 15 mm	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
Self tapping wall tie	3799275	250 per box	275 mm	125 +/- 15 mm	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
Self tapping wall tie	3799250	250 per box	250 mm	100 +/- 15 mm	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
Self tapping wall tie	3799210	250 per box	210 mm	-	MX 4	RVS 316	W-Nr.: 1.4401-1.4362	316 O.G.
